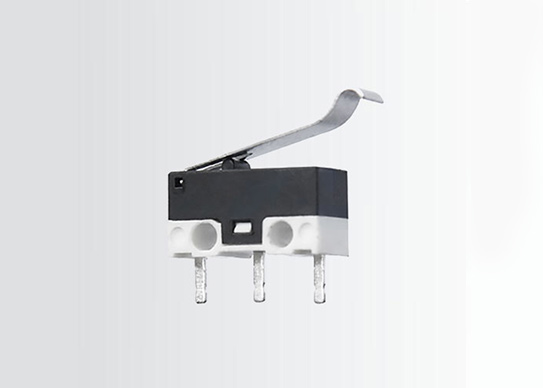

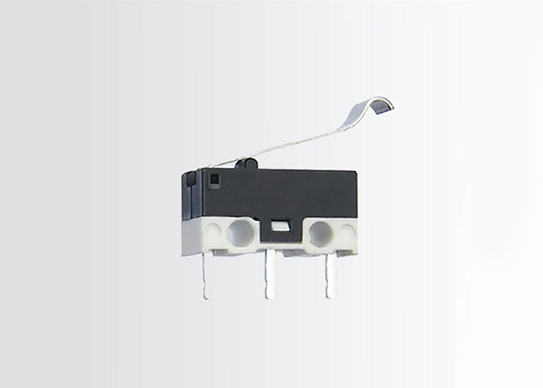

Small Micro Switch G10A

Considerate design in size and structure
Long life and high reliability
Multiple choices of levers and terminals
Mainly used in home appliances and industry control

What Does A Shifter Micro Switch Do

Shifter micro switches are usually placed under the mechanical structure of shifting system, to detect movement from shifter lever and to generate electric signal which helps computer control gear switching in different positions. In some special cases of shifter application, mini waterproof micro switch is also used as on-off device which opens or close the circuit. The switch is controlled by an electromagnetic valve, when the shifter is on parking mode, the open circuit help latch the shifter lever at "P" position; while once the driver step on brake pedal, it would activate the electromagnetic valve, and indirectly actuates the switch to close the circuit and unlock the shifter lever, at this moment, you are free to shift from Mode "P" to other gear positions.

Specifications of Small Micro Switch G10A

Place of Origin		Guangdong, China (Mainland)
Brand Name		Unionwell
Model Number		G10A Series
Max Operating Force (at pin plunger)		150gf Max

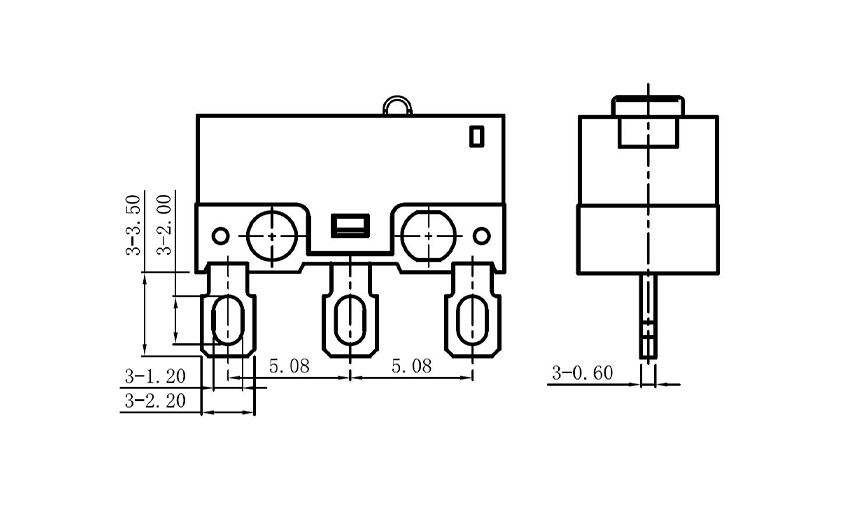

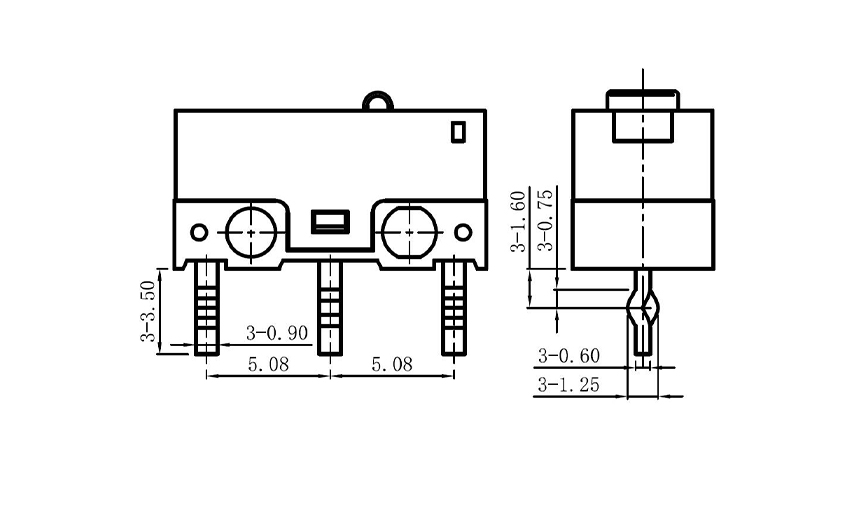

Terminal Type		Mold Lead Wires/Solder/PCB

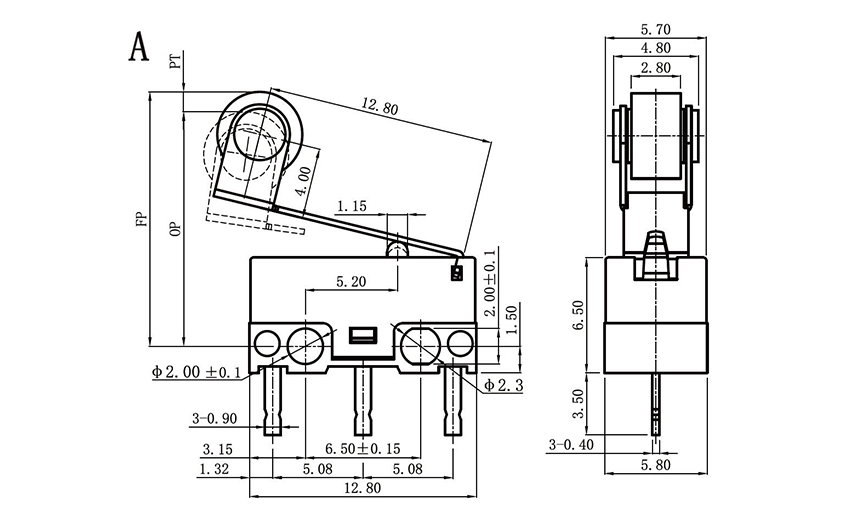

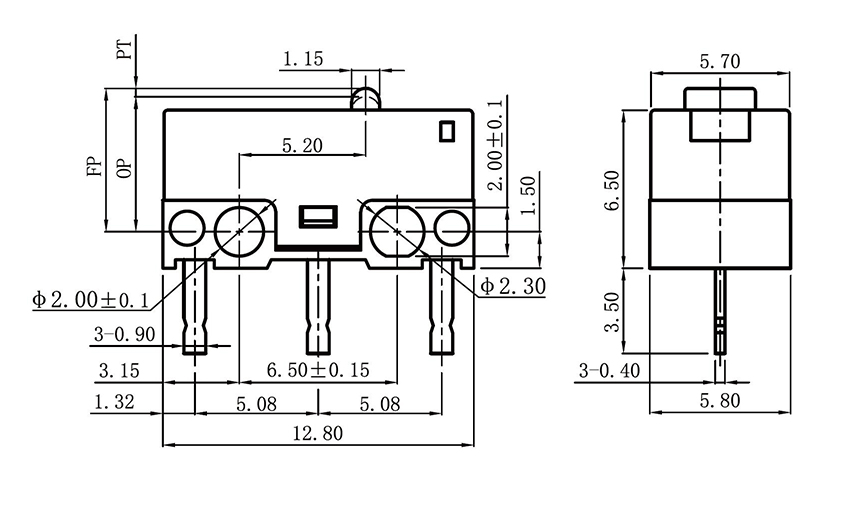

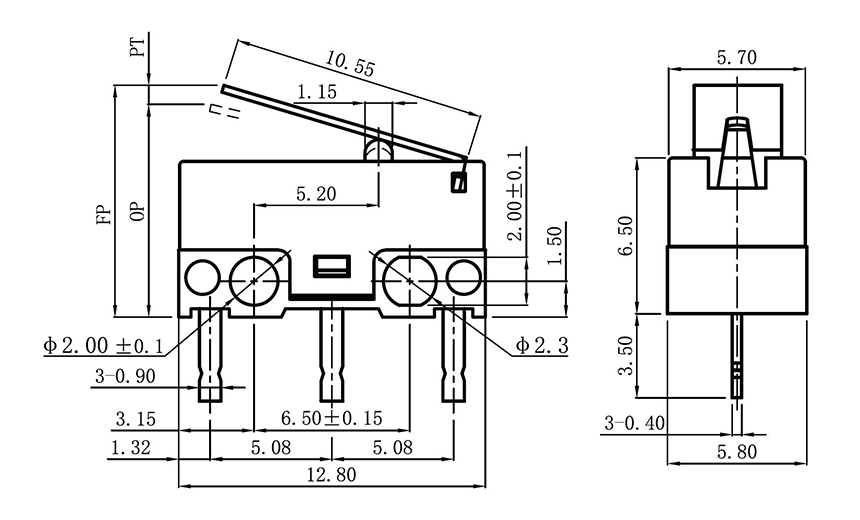

Lever Type		No Lever/Hinge/Leaf

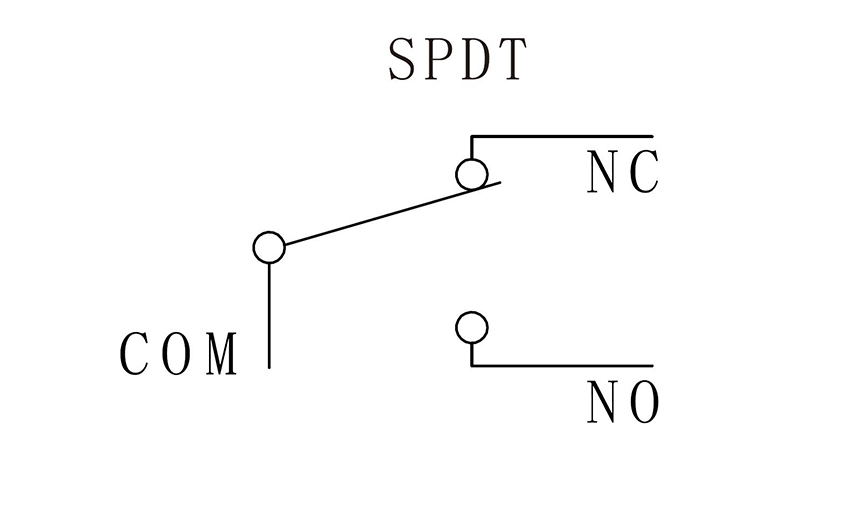

Circuit Code		SPDT/SPST-NO/SPST-NC
Certifications		ENEC, UL/cUL, CQC
OEM/ODM		Available
Rating	P1	0.1A-120cycles/minute; 3A-10~30 cycles/minute
	03	120 Cycles/minute
Operating Frequency	Electrical	10~30 cycles/minute
	Mechanical	120 cycles/minute
Contact Resistance(Initial Value)		100mΩ Max (Depends on P/Ns)
Insulation Resistance (at 500VDC)		At 500VDC, 100MΩ Min
Dielectric strength		AC 600V RMS (50-60HZ)
Storage Temperature		"-40℃-+85℃
Storage Humidity		85%RH Max
Life Expectancy	Electrical	10,000 cycles
	Mechanical	1,000,000 cycles
