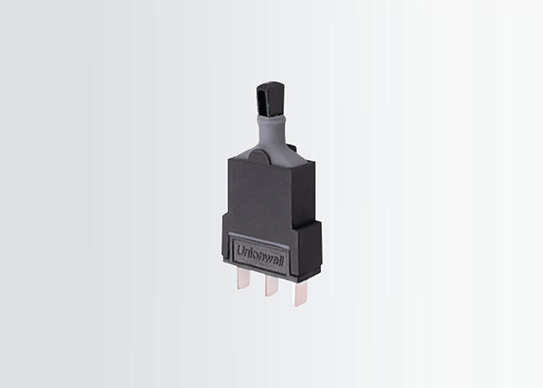

Swing Rotary Switch G16
swing rotary switch g16
swing rotary switch g16

Swing Rotary Switch G16

  • Water and Dust Proof (IP67) Design

  • Long Life, High Reliability

  • Variety of PCB terminals and solder Terminals

  • Mounting post could be Φ2.0 andΦ2.4, post distance could be 9.5mm, 12mm and12.5mm

  • Bidirectional conduction design

  • Mini size, could be used in limited space

Contact Us PDF download

Specifications of Swing Rotary Switch G16

Place of OriginGuangdong, China (Mainland)
Brand NameUnionwell
Model NumberG16
Rating0.1A 12VDC
Operating FrequencyElectrical20 cycles/min.
Mechanical30 cycles/min.
Contact Resistance (Initial Value)200mΩ Max.
Insulation Resistance (at 500VDC)100mΩ Min.
Vibration Durability10~55Hz, Amplitude 1.5mm
Shock Resistance
Acceleration 98m/s, Time 11ms
Voltage ResistanceBetween Terminals500VDC 50-60Hz 1min
Between terminals and housing1000VAC 50-6OHz 1min
Service LifeElectrical100,000 cycles
Mechanical100,000 cycles
Operating Force200gf Max
Storage Temperature-40°C~+85°C
Storage Humidity85%RH Max
Unit weight1.6g


Products

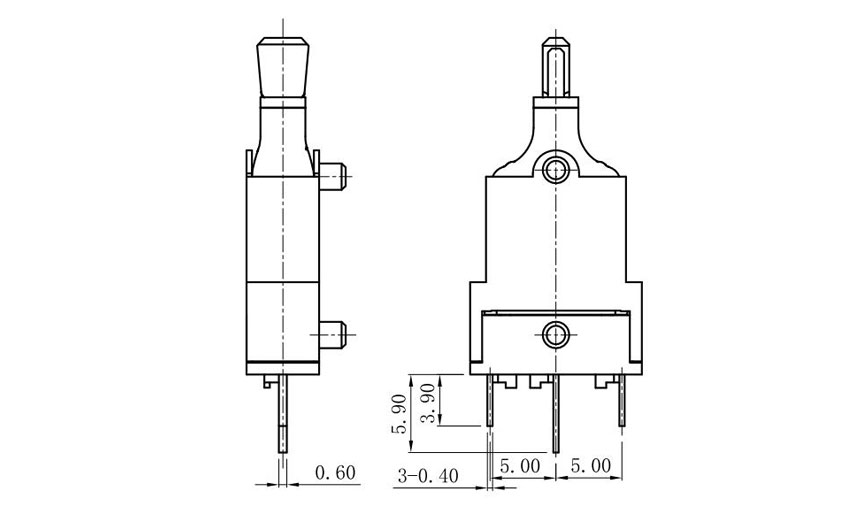

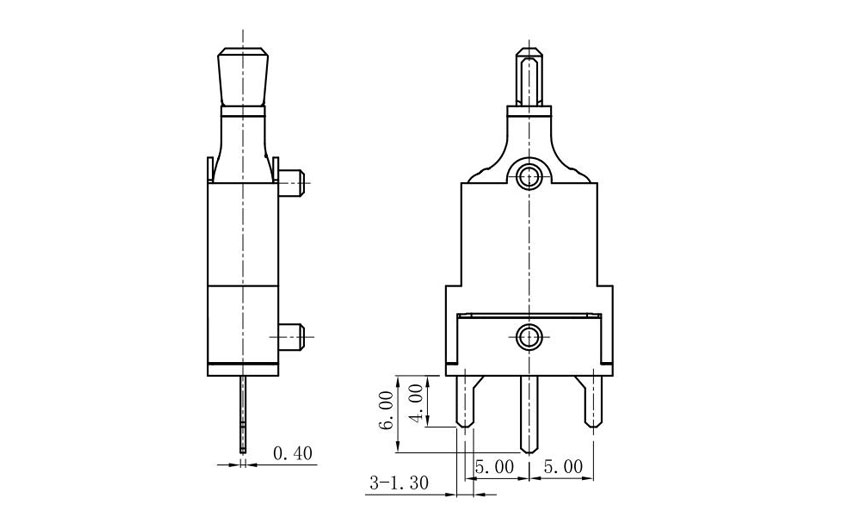

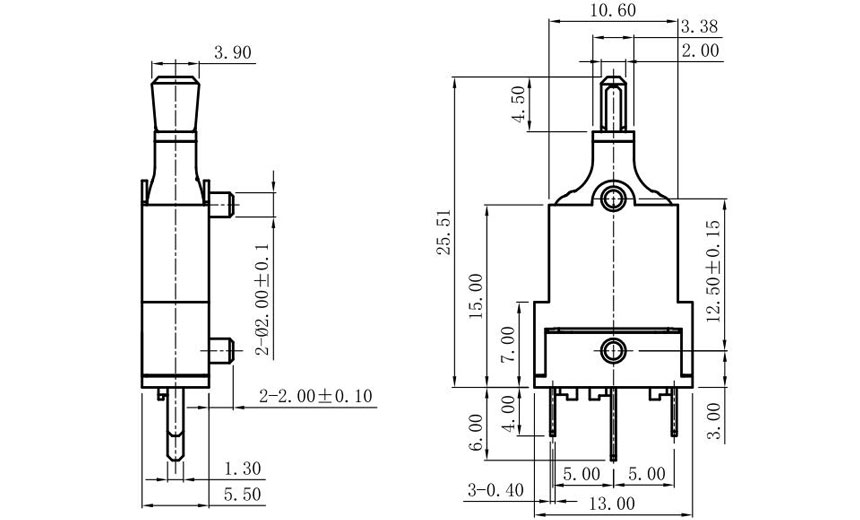

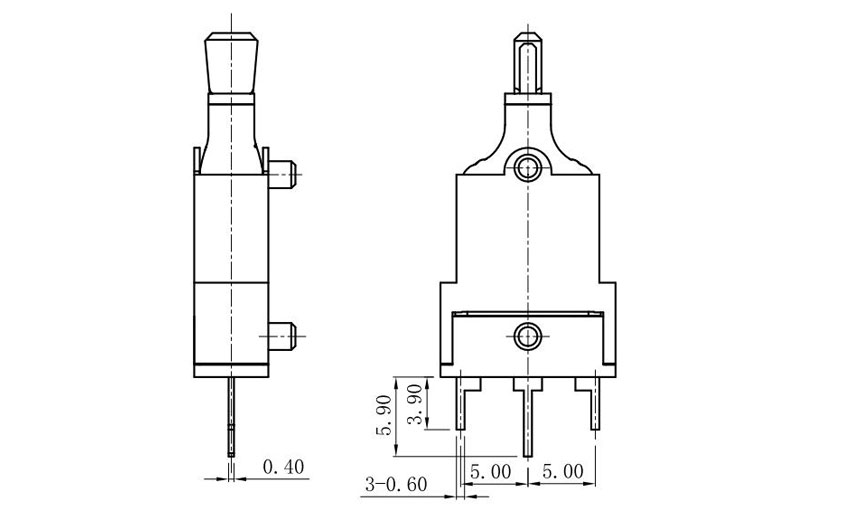

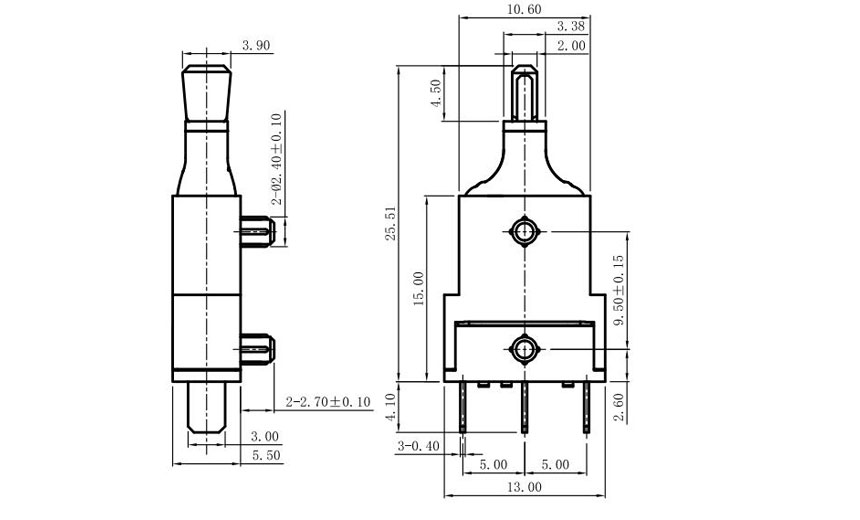

Product Drawing of Swing Rotary Switch G16

different types of rotary switches
stabilizer rotary switch price
rotary switch price
rotary limit switch price
cooler rotary switch price
rotary switches suppliers

Swing Rotary Switch G16 Related Applications

Custom Mini Waterproof Micro Switches Used in Automotive Industry
Automotive
