G307B Triple Circuit Loop Momentary Micro Switch

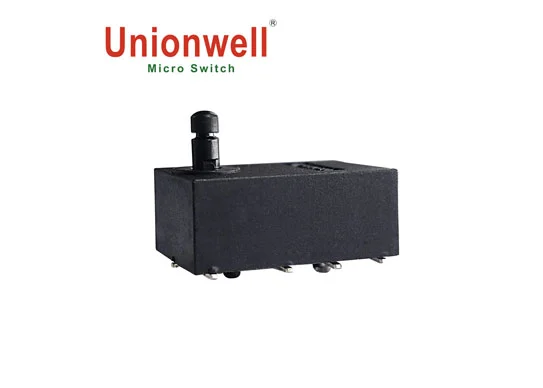

g307b 150r00au 1
g307b 150r00au 1

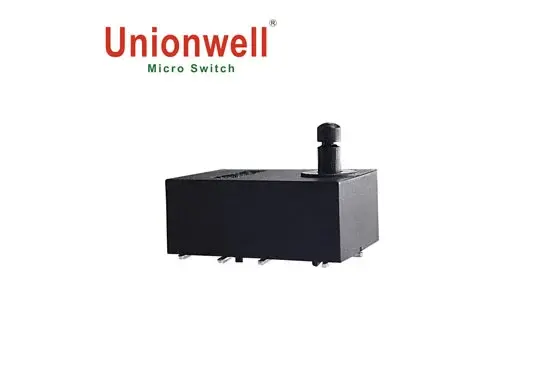

g307b 150r00au 3

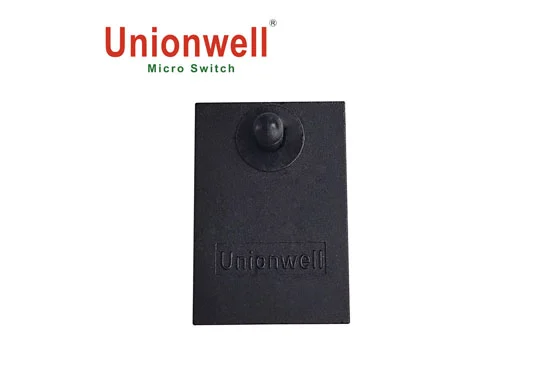

g307b 150r00au 2

G307B Triple Circuit Loop Momentary Micro Switch

  • Momentary structure, dual loop synchronization time ≤50ms;

  • Small size, compact structure, high reliability, long life;

  • Applied to micro-current load industries such as automotive industry and electronic equipment;

  • Two welding processes options – DIP or SMT.


Contact Us Datasheet

Specifications of G307B Triple Circuit Loop Momentary Micro Switch

Operating Speed1~500mm/s
Operating Frequency120 cycles/min
Insulation Resistance≥100MΩ (DC500V Insulation resistance meter)
Contact Resistance (Initial Value)With terminals type≤ 75mΩ
Voltage ResistanceBetween terminalsAC500V. 50/60Hz, 1min
Between terminals and uncharged metal partsAC500V, 50/60Hz, 1min.
Vibration ResistanceNo transformation action10-55Hz Double amplitude 1.5mm
Service LifeElectrical150,000 cycles (20 cycles/min) 50mA 18VDC 50μA 5VDC
Mechanical150.000 cycles (30 cycles/min)
Protection LevelIEC IP67 (exclude terminals)
Operating Temperature-40°C~+85°C 60%RH (No ice. no frost)
Operating Humidity95%RH (+5~+35°C)


Products

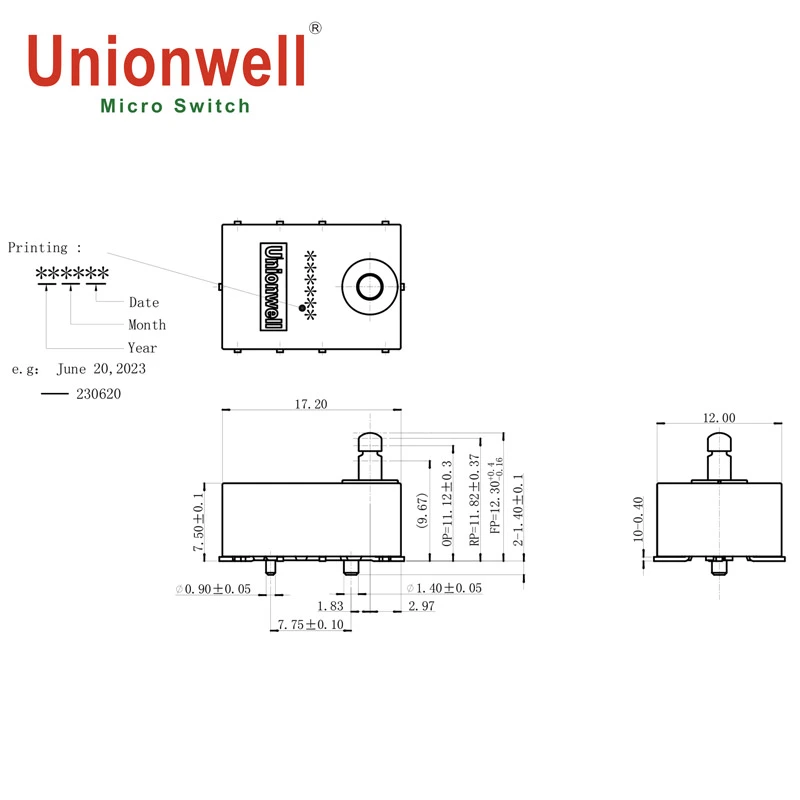

Product Drawing of G307B Triple Circuit Loop Momentary Micro Switch

g307b 150r00au3

G307B Triple Circuit Loop Momentary Micro Switch Application

Custom Mini Waterproof Micro Switches Used in Automotive Industry
Automotive
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular Sealed Subminiature Micro Switch G307 series

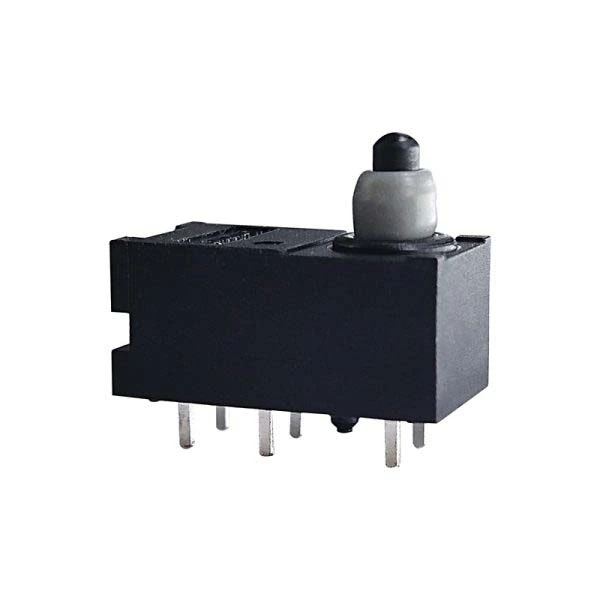

Compact DPDT Momentary Micro Switch Pin Plunger G307A
