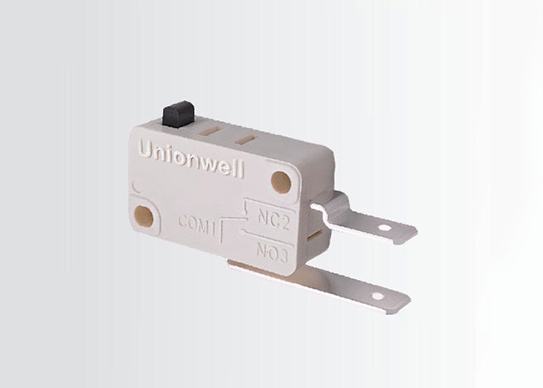

Basic Micro Switch G5T10
micro plunger switch
micro plunger switch
long lever limit switch g5t10
micro switch plunger type
micro switch pin plunger

Basic Micro Switch G5T10

  • Compact construction, small contact gap, snap action, high sensitivity, and small operating travel

  • Long life, high reliability

  • Global safety approvals

  • Variety of terminals and levers

  • Different options of operating force ( 50gf~200gf )

  • Wide Range of Temperature Grade(-25° C~+125° C)

  • With optional PT I grades (175V, 250V, 600V)

  • Widely used in appliances, electronic equipment, automatic machines, communication equipment, car electrics, apparatus and instruments, power tools, etc.

Quote Datasheet

Specifications of Basic Micro Switch G5T10

Place of OriginGuangdong, China (Mainland)
Brand NameMicro Switch Manufacturer Unionwell
Model NumberG5T10
Max Operating Force (at pin plunger)50gf/100gf/200gf
Operating Temperature-25°C~+125°C
Terminal TypeQuick Connect
Lever TypeNo Lever/Hinge/Simulated Roller/Roller/Special
Circuit CodeSPDT/SPST-NO/SPST-NC
CertificationsENEC, UL/cUL, CQC
OEM/ODMAvailable
Operating  Linear Speed0.1~1m/s (up to the actuating method)
Operating  FrequencyMechanical 60 cycles/min; Electrical 15 cycles/min
Insulation Resistance≥100MΩ（500 VDC）
Contact Resistance (Initial Value)≤100mΩ
Voltage ResistanceBetween terminalsAC1000V, 50/60Hz, 1min.
Between electrified metal parts and housing, and between terminals and unelectrified metal partsAC1500V, 50/60Hz, 1min.
Vibration Durability10-55Hz Double amplitude 1.5mm
Shock ResistanceDestruction: OF＞1.0N: 1000m/s2 (approx. 100G) max.
                         OF≤1.0N: 400m/s2 (approx. 40G) max.
Destruction: OF＞1.0N: 200m/s2 (approx. 20G) max.
                     OF≤1.0N: 100m/s2 (approx. 10G) max.
Service LifeMechanical≥ 10,000,000 cycles or 1,000,000 cycles
Electrical≥50,000 cycles or 100,000 cycles
Unit Net WeightApprox. 6.2g (No Lever)


Products

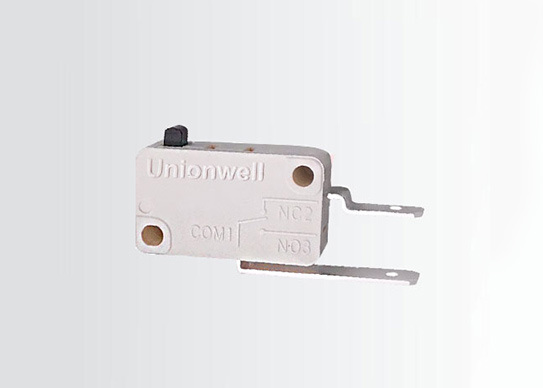

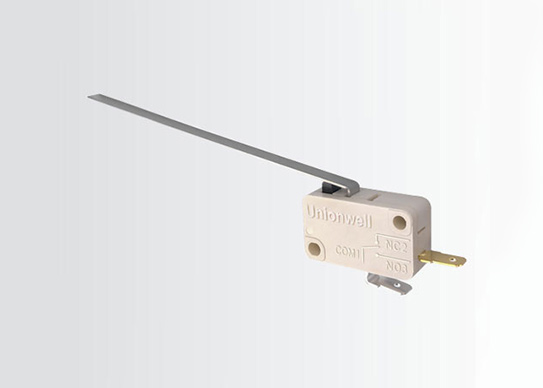

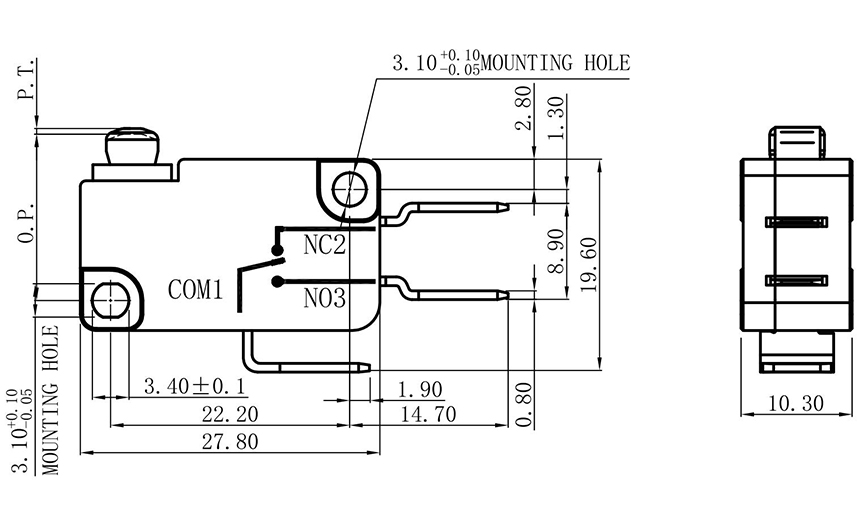

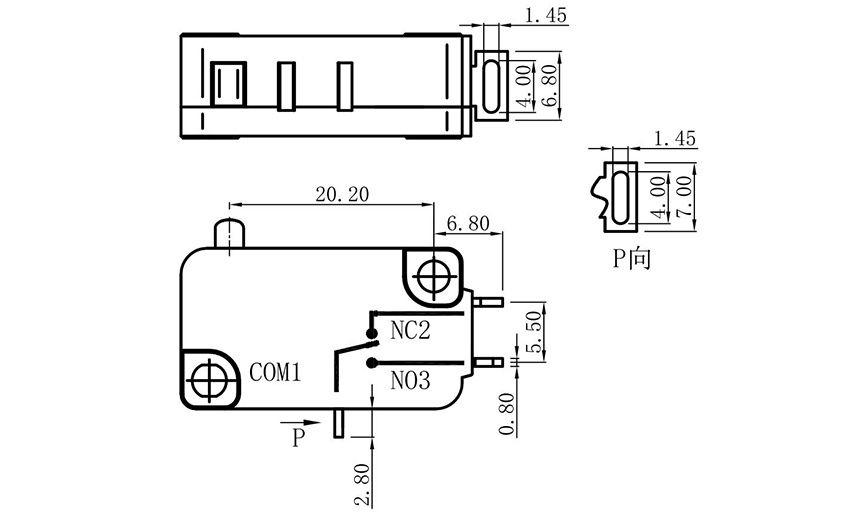

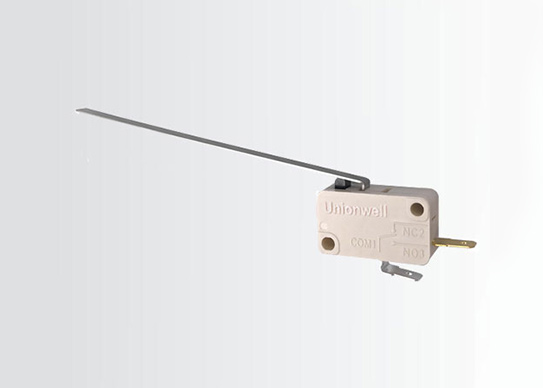

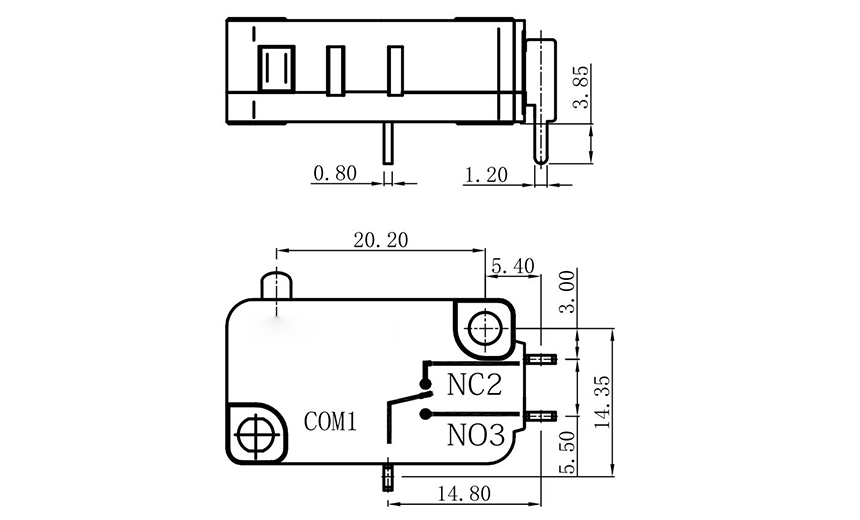

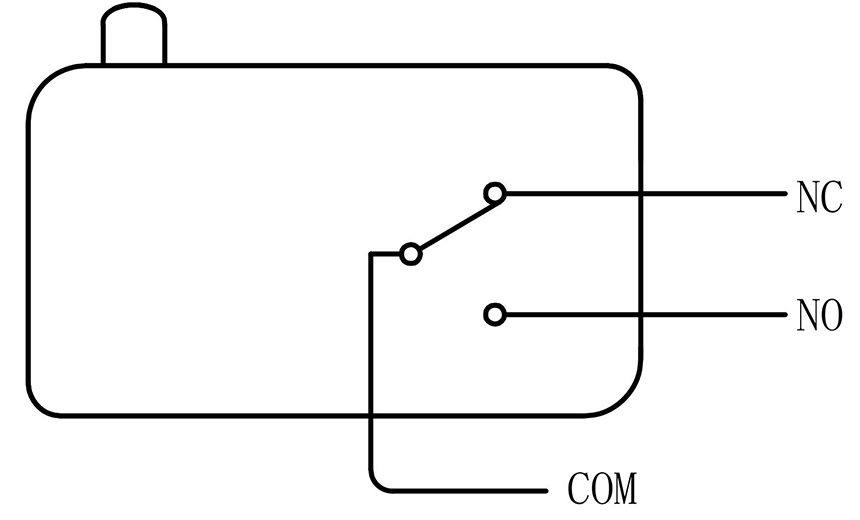

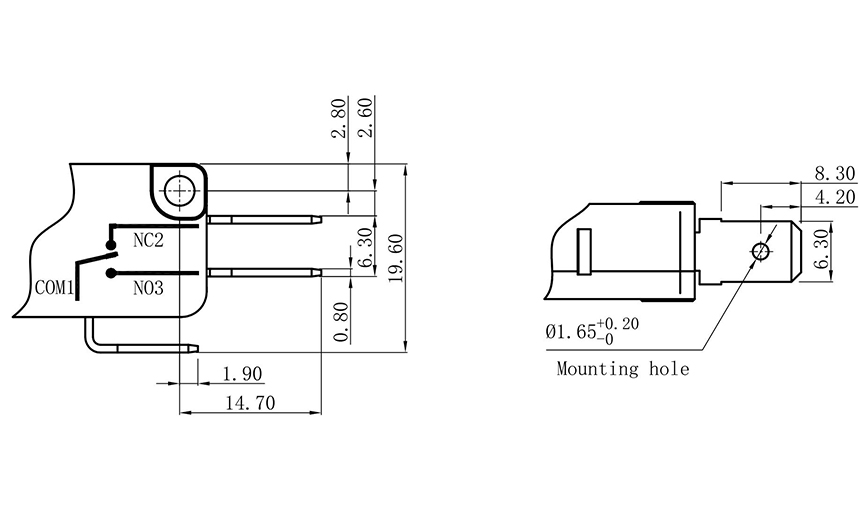

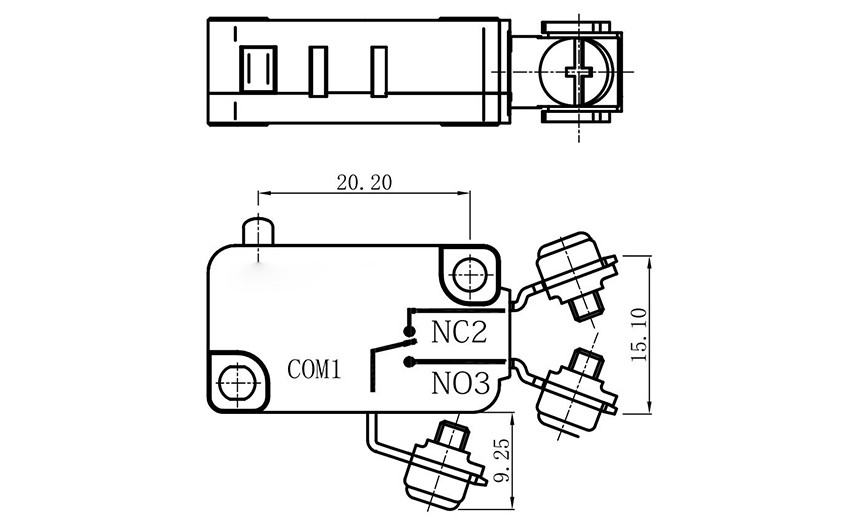

Product Drawing of Basic Micro Switch G5T10

micro plunger switch
micro switch pin plunger
plunger micro limit switch2
plunger micro limit switch
micro switch plunger type
pin plunger micro switch

Basic Micro Switch G5T10 Related Applications
