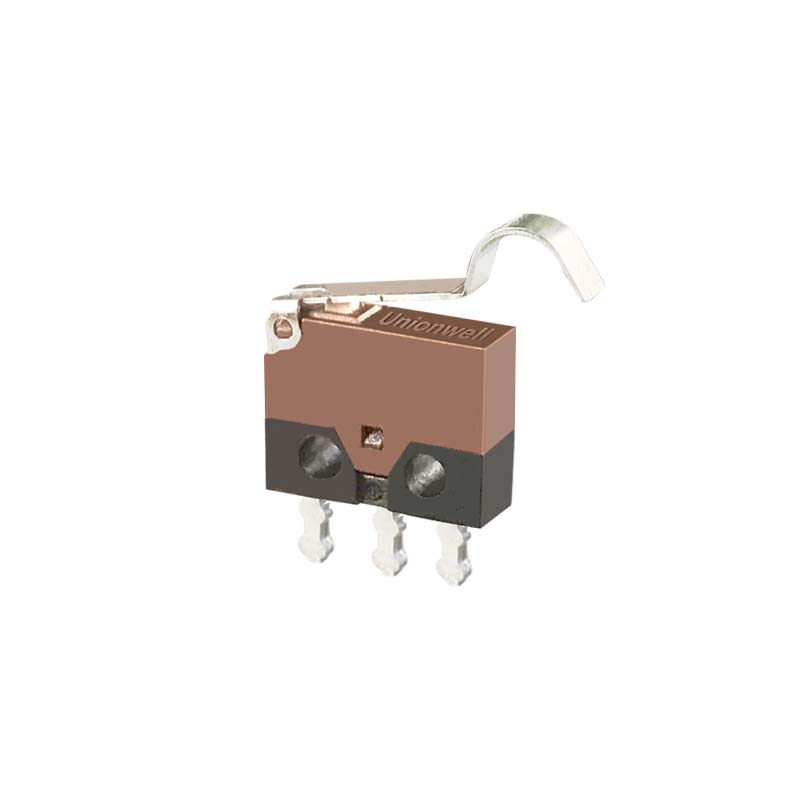

Small Micro Switch Metal Roller Lever G15D
Ultra Miniature Micro Switch G15.jpg
Ultra Miniature Micro Switch G15.jpg

Small Micro Switch Metal Roller Lever G15D

  • Ultra-slim 2.7mm body ideal for tight spaces

  • Metal roller lever for smooth, precise operation

  • Over 1 million mechanical cycles for extended durability

  • Quick response with low operating force

  • PCB terminals for easy installation

  • RoHS compliant and reliable performance in harsh conditions

The G15D small micro switch with metal roller lever offers reliable and precise switching in ultra-compact designs. With a width of just 2.7mm and a low operating force of 30gf, it’s the perfect choice for applications that demand high precision and long service life in limited space.

Designed with a high-precision spring plate, this micro switch ensures quick actuation, a crisp tactile feel, and consistent performance. The integrated molded terminal structure prevents solder flux wicking, ensuring stable PCB mounting and long-term reliability.

Engineered with silver alloy or gold-plated contacts, the G15D supports low-current applications up to 0.1A at 30V DC. It is widely used in smart electronics, home automation devices, automotive modules, and industrial equipment. Multiple lever styles are available to support diverse design needs.

The G15D micro switch meets RoHS requirements and is available in high-life versions upon request.


Parameters

Series No.G15DP1G15D01Customized
Operating Force15gf 30gf 60gf 110gf
ContactsSilver AlloyGold Plated
Electrical
Rating
O.1A DC30V1A DC15V0.1A DC30V
Contact Resistance(Initial value)100mΩ Max
Operating FrequencyMechanical: 60 cycles max  Electrical: 20 cycles max
Insulation Resistance100MΩ(DC 500V) Min
Voltage ResistanceAC250V 50/60Hz 1min
Mechanical Life20,000 cycles300,000 cycles300,000 cycles1,000,000 cycles
Electrical Life20,000 cycles300,000 cycles10,000 cycles1,000,000 cycles
Storage Humidity85% RH max at +40°C
Operating Temperature Range-40~+85°C
Solder Ability255±5°C 5s
Protection TypeIP40
Unit Net WeightApprox 0.3g
Note: Mechanical life test under 150gf operating force


Products

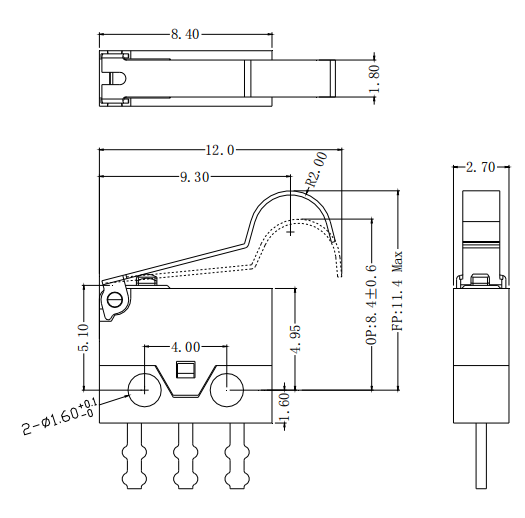

Product Drawing of Small Micro Switch Metal Roller Lever G15D
