Basic Micro Switch G5E
industrial micro switch
industrial micro switch

Basic Micro Switch G5E

Widely used in home appliances, electronic devices, automated devices, communication devices, car electronics, apparatus and instruments, electrical tools, etc. Small, compact size; long life; high reliability; variety of terminals; PTT rated 400V. specifically used in the manufacturing of electric heating taps.

Quote Datasheet

Specifications of Basic Micro Switch G5E

Place of OriginGuangdong, China (Mainland)
Brand NameUnionwell
Model NumberG5E
Max Operating  Force (at pin plunger)100gf/150gf/Others
Operating Temperature-40°C~+85°C
Terminal TypeScrew
Lever TypeNo Lever
Circuit CodeSPST-NO
CertificationsENEC, UL/cUL, CQC
OEM/ODMAvailable
Operating  Linear Speed0.1~1m/s (up to the actuating method)
Operating  FrequencyMechanical: 60 cycles/min; Electrical: 15 cycles/min
Insulation Resistance≥100MΩ（500 VDC）
Contact Resistance (Initial Value)≤100mΩ
Voltage Resistancebetween terminalsAC1000V, 50/60Hz, 1min.
Between electrified metal parts and housing, and between terminals and unelectrified metal partsAC1500V, 50/60Hz, 1min.
Vibration Durability10-55Hz 1.5mm
Operating Humidity85% RH Max
Service LifeMechanical1,000,000 cycles
Electrical50,000 cycles



Products

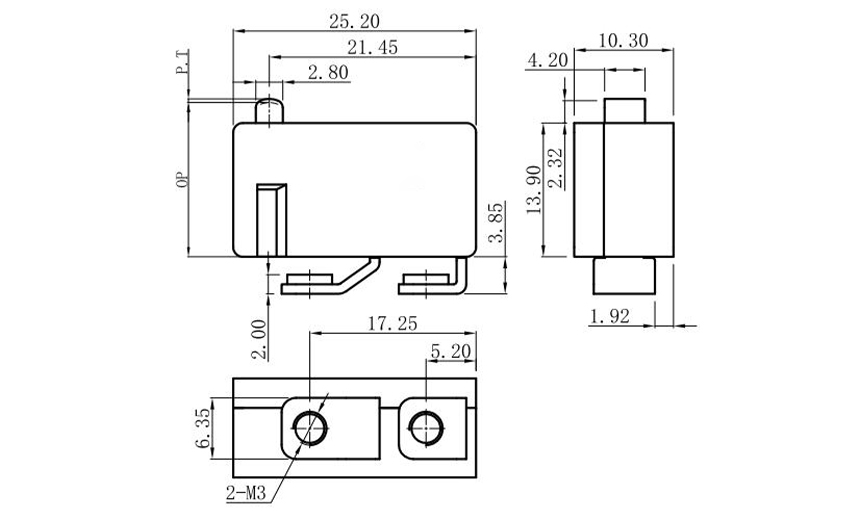

Product Drawing of Basic Micro Switch G5E

basic micro switch g5e

Basic Micro Switch G5E Related Applications

Home Appliances and Micro Switches
Home Appliances
