Small Micro Switch G10
small micro switch
small micro switch
sub miniature microswitch
ultra mini micro switch
subminiature limit switch
sub miniature switch
ultra miniature micro switch

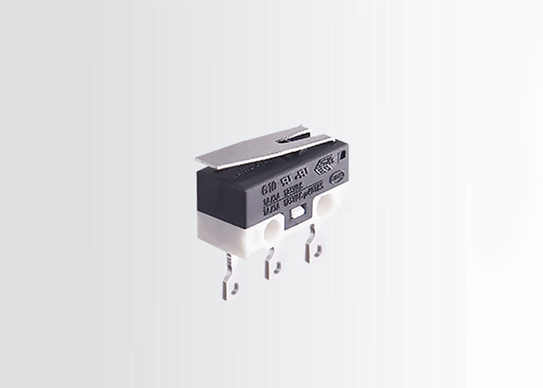

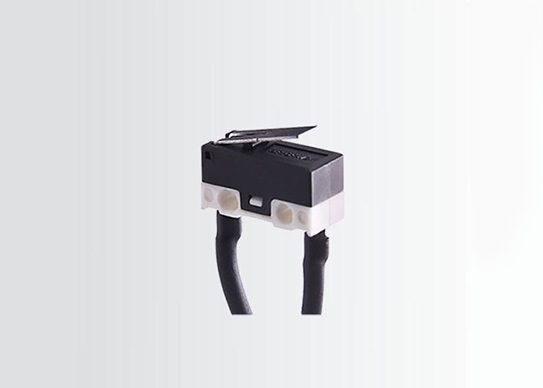

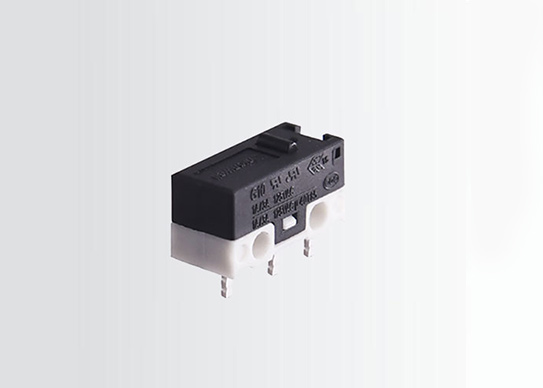

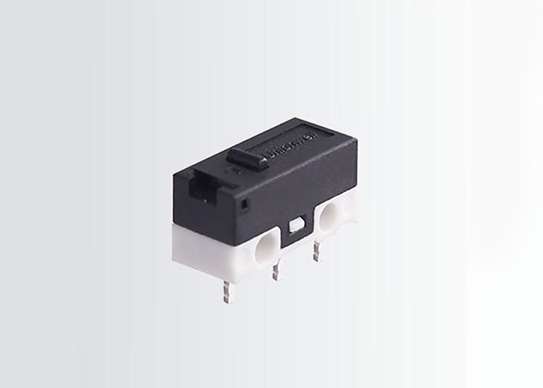

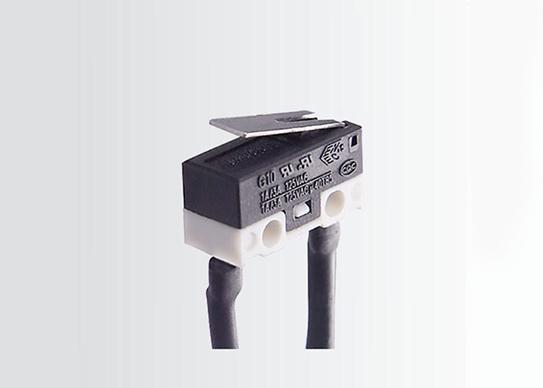

Small Micro Switch G10

  • Small size and compact structure

  • Long service life and high reliability

  • Optional levers and terminals

  • Generally applicated in home appliances, gaming control, and industry control

Contact Us Datasheet

Specifications of Small Micro Switch G10


Place of OriginGuangdong, China (Mainland)
Brand NameUnionwell
Model NumberG10 Series
Max Operating  Force (at pin plunger)150gf Max
Terminal TypeMold Lead Wires/Solder/PCB
Lever TypeNo Lever/Hinge/Leaf
Circuit CodeSPDT/SPST-NO/SPST-NC
CertificationsENEC, UL/cUL, CQC
OEM/ODMAvailable
RatingP10.1A  48VDC/VAC (Gold plated optional)
031A/3A 125VAC
Operating FrequencyElectrical10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance(Initial Value)100mΩ Max (Depends on P/Ns)
Insulation Resistance (at 500VDC)At 500VDC,100MΩ Min
Dielectric strengthAC 600V RMS (50-60HZ)
Storage Temperature-40℃-+85℃
Storage  Humidity85%RH Max
Life ExpectancyElectrical6,000~100,000 cycles (Depends on P/Ns)
Mechanical1,000,000 cycles (5,000,000 cycles Optional)
Unit Net WeightAbout 0.5g (Straight PCB type without lever)




Products

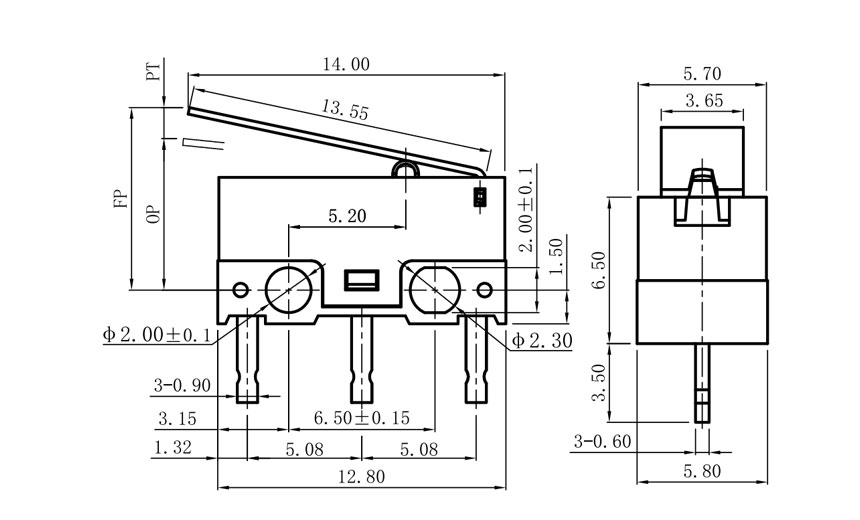

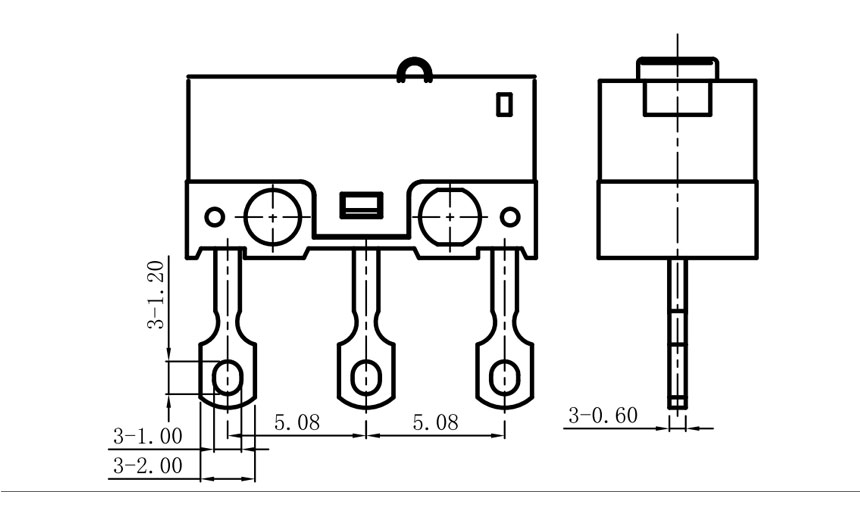

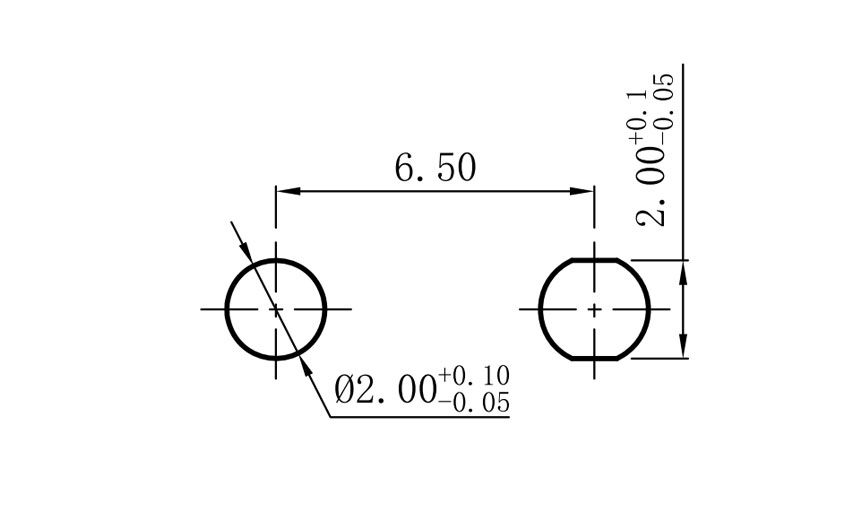

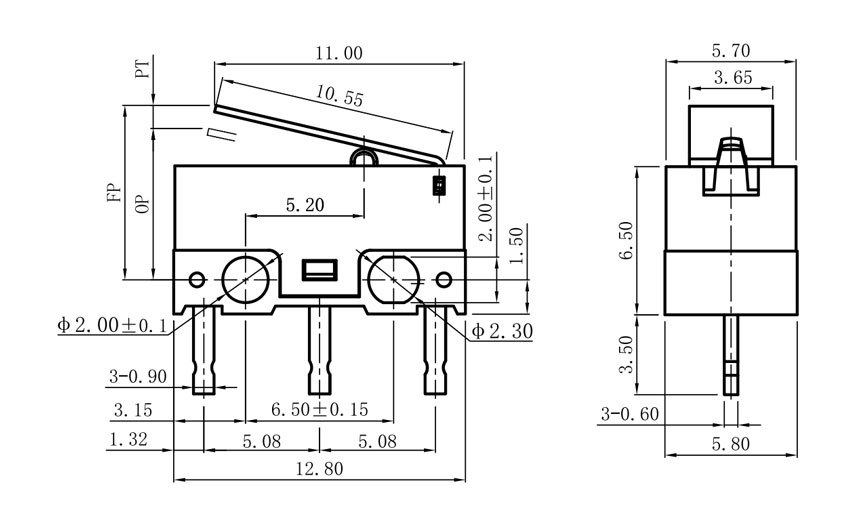

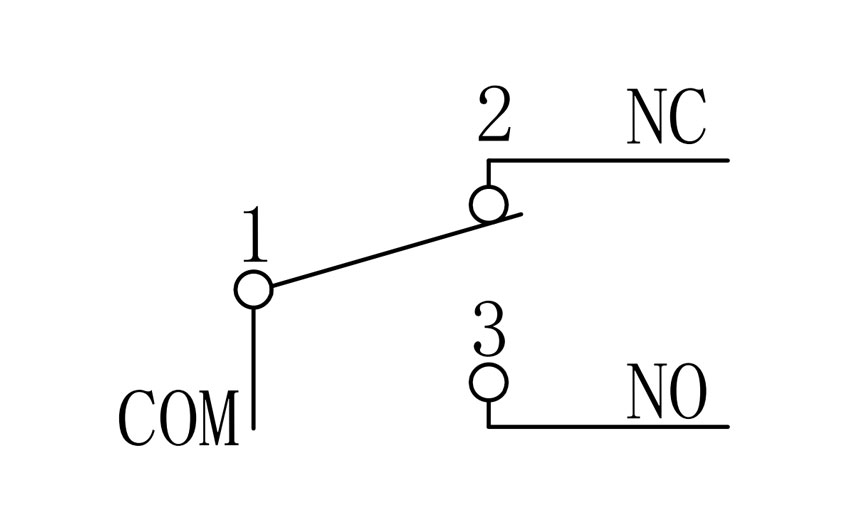

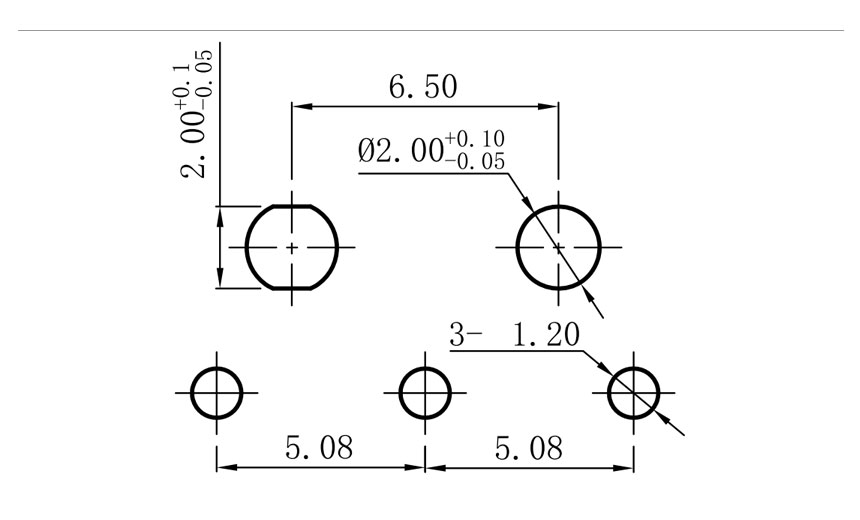

Product Drawing of Small Micro Switch G10

micro switch on off on
micro switch on off
micro switch momentary
micro switch long lever
micro switch light
micro switch industrial
