Ultra Mini Micro Switch White Base
Ultra Mini Micro Switch White Base.jpg
Ultra Mini Micro Switch White Base.jpg

Ultra Mini Micro Switch White Base

  • Super compact 2.7mm width – fits tight spaces perfectly

  • Stylish white base with durable plastic lever options

  • High-sensitivity actuation with low 15gf operating force

  • Integrated PCB terminals for secure, solder-safe mounting

  • Built for reliability – RoHS compliant and long mechanical life

  • Ideal for smart electronics, automation devices, and control systems

Designed for modern electronics and intelligent control systems, the G15E ultra mini micro switch offers exceptional performance in a sleek, compact form. With a width of just 2.7mm and a white base, it combines space-saving design with a clean aesthetic that’s ideal for visible applications.

The G15E features a high-precision spring plate that enables rapid switching, excellent tactile feedback, and long-term durability. With a low operating force of just 15gf, it's perfect for sensitive and low-power applications.

Thanks to its molded terminal structure, the switch prevents solder flux wicking and ensures solid, secure mounting on standard PCBs. It is available with silver alloy or gold-plated contacts and a variety of plastic lever types to suit diverse product designs.

Whether used in smart devices, compact controllers, or automation systems, the G15E switch delivers reliable performance and complies with RoHS standards.


Parameters

Series No.G15EP1G15E01
Operating Force60gf Max.
ContactsSilver AlloyGold Plated
Electrical
Rating
O.1A DC30V1A DC15V
Contact Resistance(Initial value)100mΩ Max
Operating FrequencyMechanical: 60 cycles max
Electrical: 20 cycles max
Insulation Resistance100MΩ(DC 500V) Min
Voltage ResistanceAC250V 50/60Hz 1min
Mechanical Life20,000 cycles300,000 cycles300,000 cycles
Electrical Life20,000 cycles300,000 cycles10,000 cycles
Storage Humidity85%RH max at +40°C
Operating Temperature Range -40~+85°C
Solder Ability255±5°C 5s
Protection TypeIP40
Unit Net WeightApprox 0.3g
Note: Mechanical life simulation test under 150gf operating force


Products

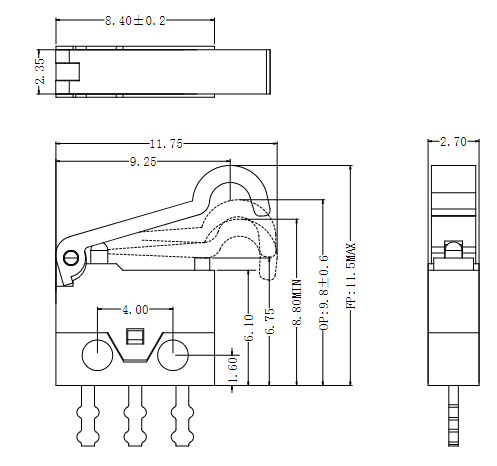

Product Drawing of Ultra Mini Micro Switch White Base
