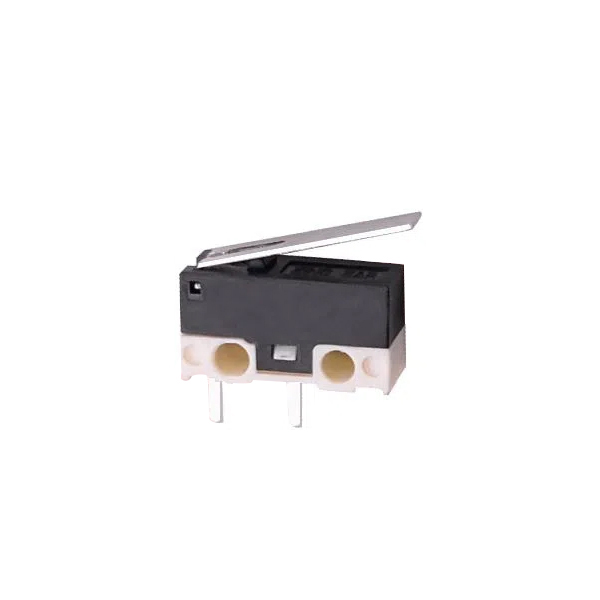

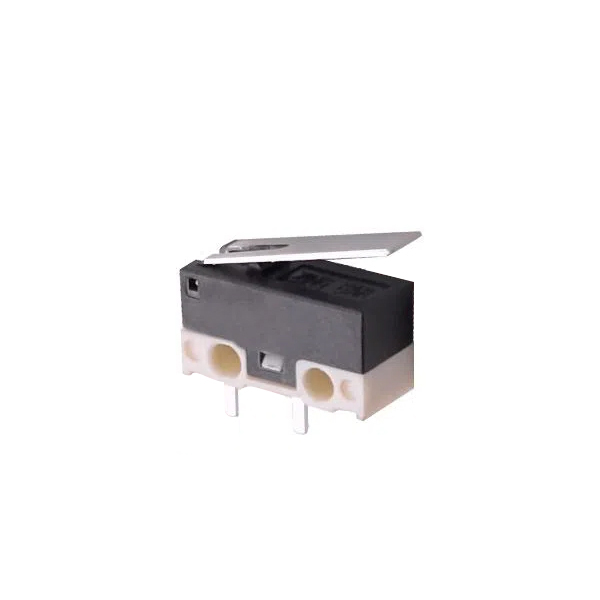

Micro Limit Switch G10A

Micro Limit Switch G10A

  • Model Number: G10A03-150S03CU

  • Electrical Rating:

    ENEC/CQC

    3A 125/250VAC 30VDC, 1E4 μ 40T85

    UL/cUL

    3A  125/250VAC 30VDC

  • Operating Force: 150gf Max

  • Terminal Style: Solder terminals

  • Lever Type: 03# lever

  • Circuit Code: SPST-NO

Contact Us

The Features Of Micro Limit Switch

  1. Small compact size

  2. Long life and high reliability

  3. Variety of levers optional

  4. Various of terminals

  5. Custom micro switch design and engineering solutions for your applications

  6. Widely used in appliances and industry control



The Parameters Of Micro Limit Switch

RatingP10.1A 125/250VAC 30VDC
033A 125/250VAC 30VDC
Operating FrequencyElectrical10~30   cycles/minute
Mechanical120 cycles/minute
Contact Resistance(initial value)100mΩ Max (without wire type)
Insulation Resistanceat 500VDC,100MΩ Min.
Dielectric StrengthAC 600VAC RMS (50-60HZ)
Storage Temperature-40°C~+85°C
Storage Humidity85%RH Max
Service LifeElectrical10,000 cycles
Mechanical1,000,000 cycles
