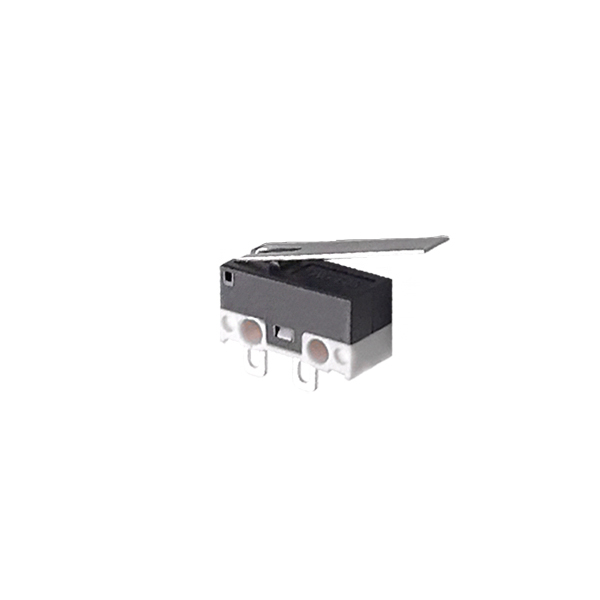

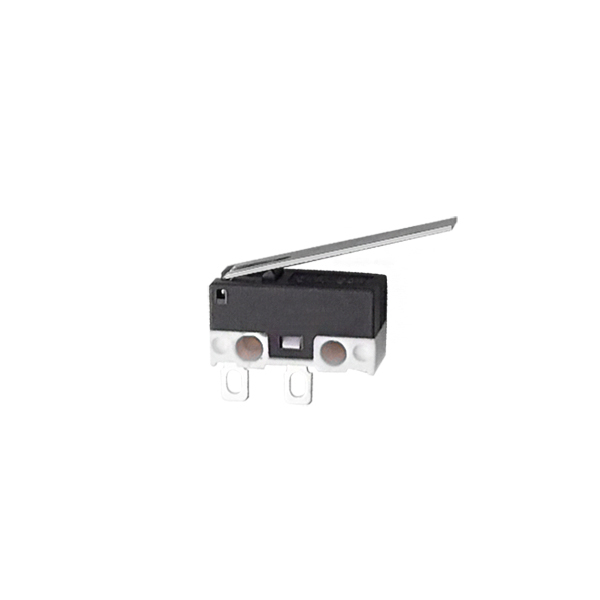

Subminiature Microswitch Lever On/Off Switch G10A

Subminiature Microswitch Lever On/Off Switch G10A

  • Model Number: G10A03-150S03CU

  • Electrical Rating:

    ENEC/CQC

    3A 125/250VAC 30VDC, 1E4 μ 40T85

    UL/cUL

    3A  125/250VAC 30VDC

  • Operating Force: 150gf Max

  • Terminal Style: Solder terminals

  • Lever Type: 03# lever

  • Circuit Code: SPST-NO

Contact Us

The Features Of  Subminiature Microswitch Lever

  • Small compact size

  • Long life and high reliability

  • Variety of levers optional

  • Various of terminals

  • Custom micro switch design and engineering solutions for your applications

  • Widely used in appliances and industry control



The Parameters Of  Subminiature Microswitch Lever

RatingP10.1A 125/250VAC 30VDC
033A 125/250VAC 30VDC
Operating FrequencyElectrical10~30   cycles/minute
Mechanical120 cycles/minute
Contact Resistance(initial value)100mΩ Max (without wire type)
Insulation Resistanceat 500VDC,100MΩ Min.
Dielectric StrengthAC 600VAC RMS (50-60HZ)
Storage Temperature-40°C~+85°C
Storage Humidity85%RH Max
Service LifeElectrical10,000 cycles
Mechanical1,000,000 cycles
