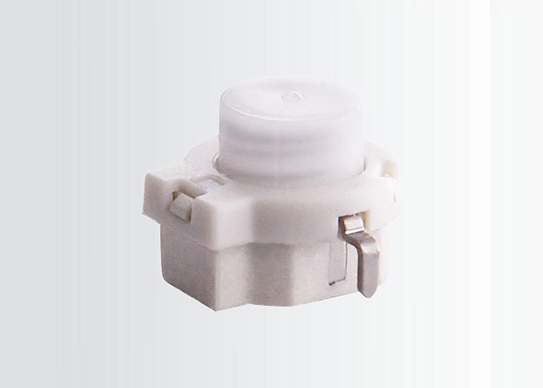

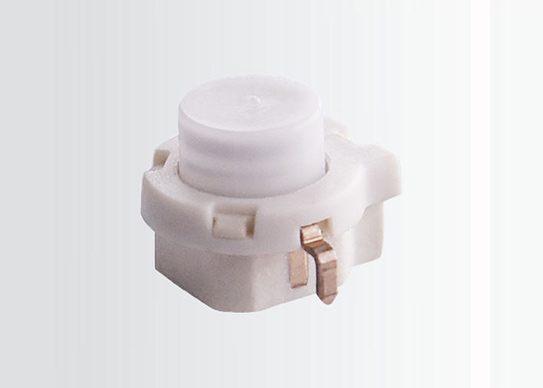

Mechanical Keyboard Switch GT11
white keyboard switches gt11
white keyboard switches gt11
white key switches gt11

Mechanical Keyboard Switch GT11

  • Smooth and natural textures, no touch key angle card lag phenomena

  • Life may reach more than 10 million times

  • With tactile sound or smooth mute for selection

  • Compatible with RGB colors

  • LED lights introduced a vibrant backlight; items with patent registration, the first innovation in the sector

Specifications of Mechanical Keyboard Switch GT11

Place of OriginGuangdong, China (Mainland)
Brand NameUnionwell
Model NumberGT11
Electrical
Characteristics
Rating12V  DC/AC Max.10mA  AC/DC  Max.
Contact Resistance200mΩ Max. (Initial Value)
Insulation Resistance100mΩ Min.
Voltage ResistanceAC 100V (50/60Hz) 1Minute
Electrical lifeOver 10,000,000 Cycles (Load)
Bounce TimeOperation speed at <400mm/sec
ParametersTactile Force (TF)70 ± 15gf
Tactile Position (TP)1.0 ± 0.3mm
Operating Position (OP)(TP±0.1) ≤OP≤1.6mm
Total Travel (TT)2.5 ± 0.2mm (GT11A) 2.5 +0/-0.3mm (GT11B)
Return Force (RF)20gf Min
Mechanical LifeOver 20,000,000 cycles (No Load)
Operating Temperature-40°C~+80°C
Ambient Humidity≤85%RH
Hand Solder Condition3sec Max. 360°C ± 10°C


Products

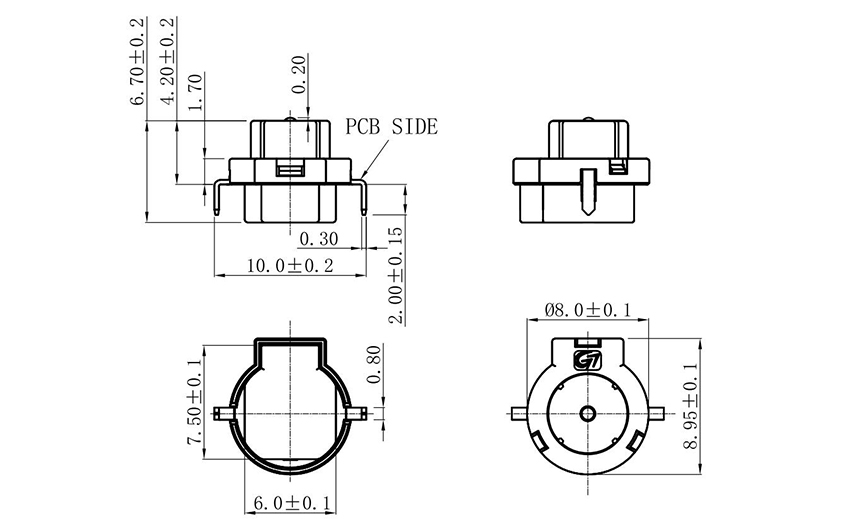

Product Drawing of Mechanical Keyboard Switch GT11

mechanical keyboard cream switches
white key switches
