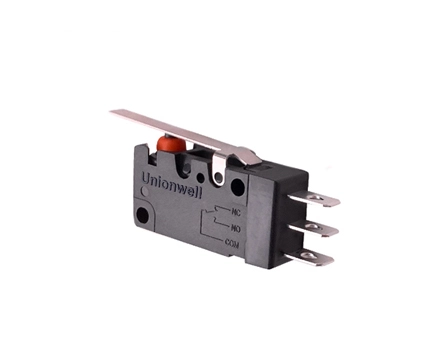

Waterproof Microswitch Switch Symbol G5W11
g5w11-e200-u1u-01
g5w11-e200-u1u-01
g5w11-e200-u1u-02

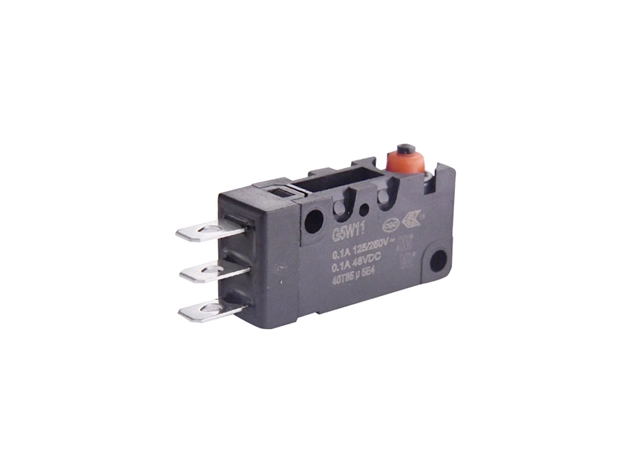

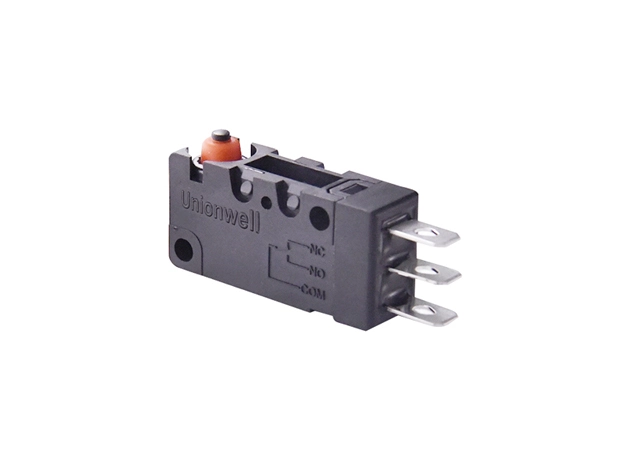

Waterproof Microswitch Switch Symbol G5W11

  • Place of Origin: Guangdong, China (Mainland)

  • Brand/Model: Unionwell / G5W11-EZ200U

  • Temperature Grade & Protection: 40T85, IEC IP67 (Water and Dust Tight)

  • Certifications: ENEC/CQC and UL/cUL

  • Terminal Style: 4.7*0.5mm Quick Connect

  • Circuit Code: SPDT

  • Operating Force: Max 200gf at Pin Plunger

  • Applications: Automotive electronics, appliances, industrial control, etc.


Quote

The G5W11-EZ200U waterproof microswitch (Switch Symbol) is engineered for water and dust tight protection (IP67). Featuring a compact design with a minimal contact gap, this microswitch delivers snap action, high sensitivity, long service life, and outstanding precision and reliability. Certified to meet both ENEC/CQC and UL/cUL standards, it incorporates a 4.7*0.5mm quick connect terminal, an SPDT circuit configuration, and a maximum operating force of 200gf. Ideal for automotive electronics, household appliances, industrial control, and more, this product provides a robust solution for diverse applications.


Parameters

Operating FrequencyElectrical10~30  times/min
Mechanical60 times/min
Contact Resistance(initial value)with terminal50mΩMax
with wire100mΩ Max(Depends on the length of the wire)
Insulation resistanceat 500VDC,100MΩ Min.
Dielectric StrengthBetween terminalsAC 1000V 50-60Hz 1min
Between terminals and housingAC 1500V 50-60Hz 1min
Storage Temperature-40°C~+85°C
Storage Humidity85%RH Max
Protection gradeWith terminalIEC IP67(Terminal not included)
With wireIEC IP67
Electric-shock safeguard gradeClass II
LifeE-life2E4~10E4 cycles(depends on P/NS)
M-lifeover 500,000 cycles, 1,000,000cycles(60cycles/min)
WeightApprox.7g(with terminal and without lever)


Products

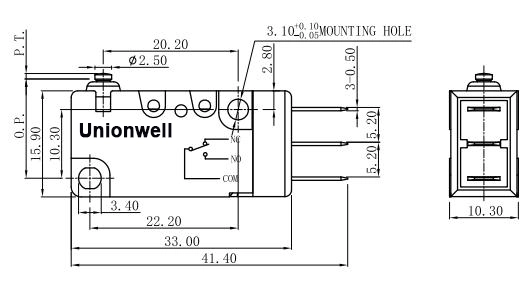

Waterproof Microswitch Switch Symbol G5W11 Drawings
