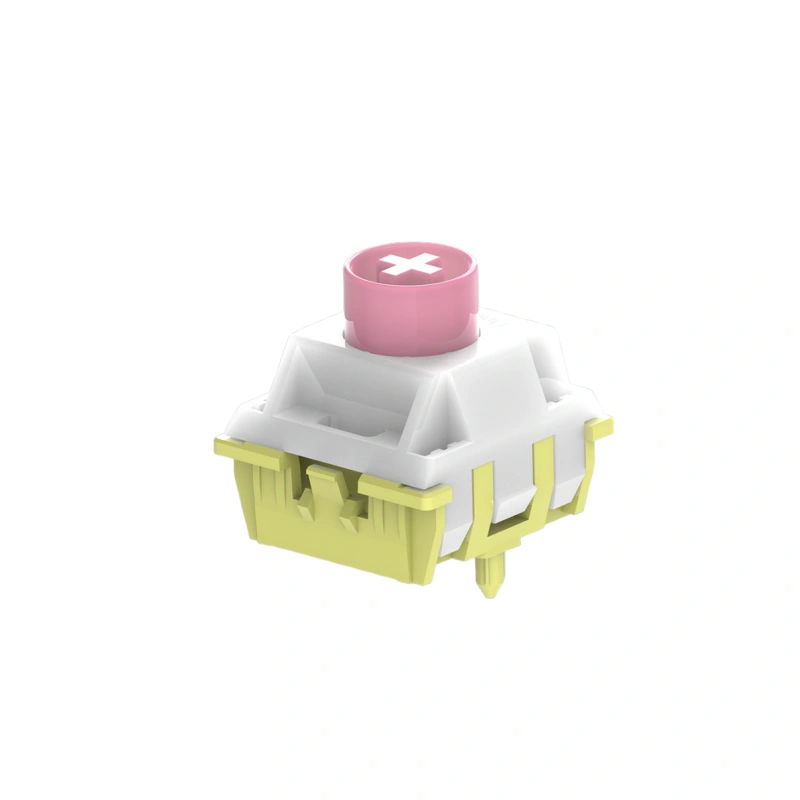

Polar Magnetic switch PRO

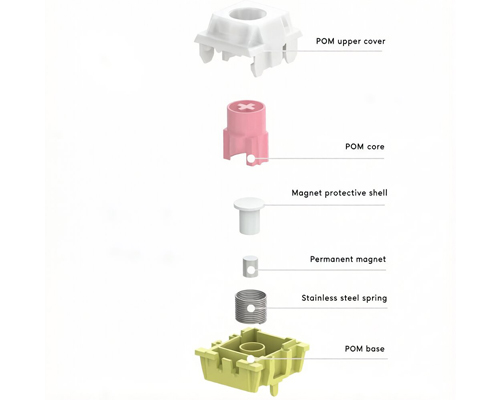

Polar Magnetic Switch RRO Exploded View

New-generation POLAR Magnetic Switch PRO

Anti-offset stabilization structure for the switch

To ensure that every trigger is more precise and reliable when youoperate the Ultra Magnetic Switch PRO+, we have innovativelydesigned the "Dual-body Suspended Structure" switch system,which includes 3 core highlights:

#1 Dual-module idependent

The body is divided into two intelligently cooperating modules:-

• Fingertip contact area - Movable module

• Magnetic induction area  Suspended module

The two modules are flexibly connected via a patented"ball-and-socket joint", allowing them to return to their originaposition smoothly like the base of a roly-poly toy.

#2 Spring buffer protection

The built-in high-precision extended spring system provides

three guarantees:

• Ensures rapid key rebound

• lsolates external pressure interference

• Maintains the optimal working distanceof the magnet.

#3 Intelligent pressure transmission system

State of positive vertical pressing

Vertical press - Both modules are pressed down synchronouslyto trigger signals precisely.

State of lateral offset pressure

When pressed laterally- The movable module automaticallyadjusts its deflection angle via the ball-and-socket joint, while thesuspended module remains vertically stable at all times toprevent magnetic

Polar Magenetic Swich PRO Technical Advantages

• Ensures the accuracy of each diagonal press (lateral offset pressure)during intense operations

• Maintains consistent triggering even with long-term andhigh-frequency use

• Effectively resists the risk of false triggers caused by externalvibrations

This innovation enables the magnetic switch to break through thelimitations of traditional structures. While retaining the mechanicalfeel, it ensures signal accuracy, bringing you a purerhuman-computer interaction experience.

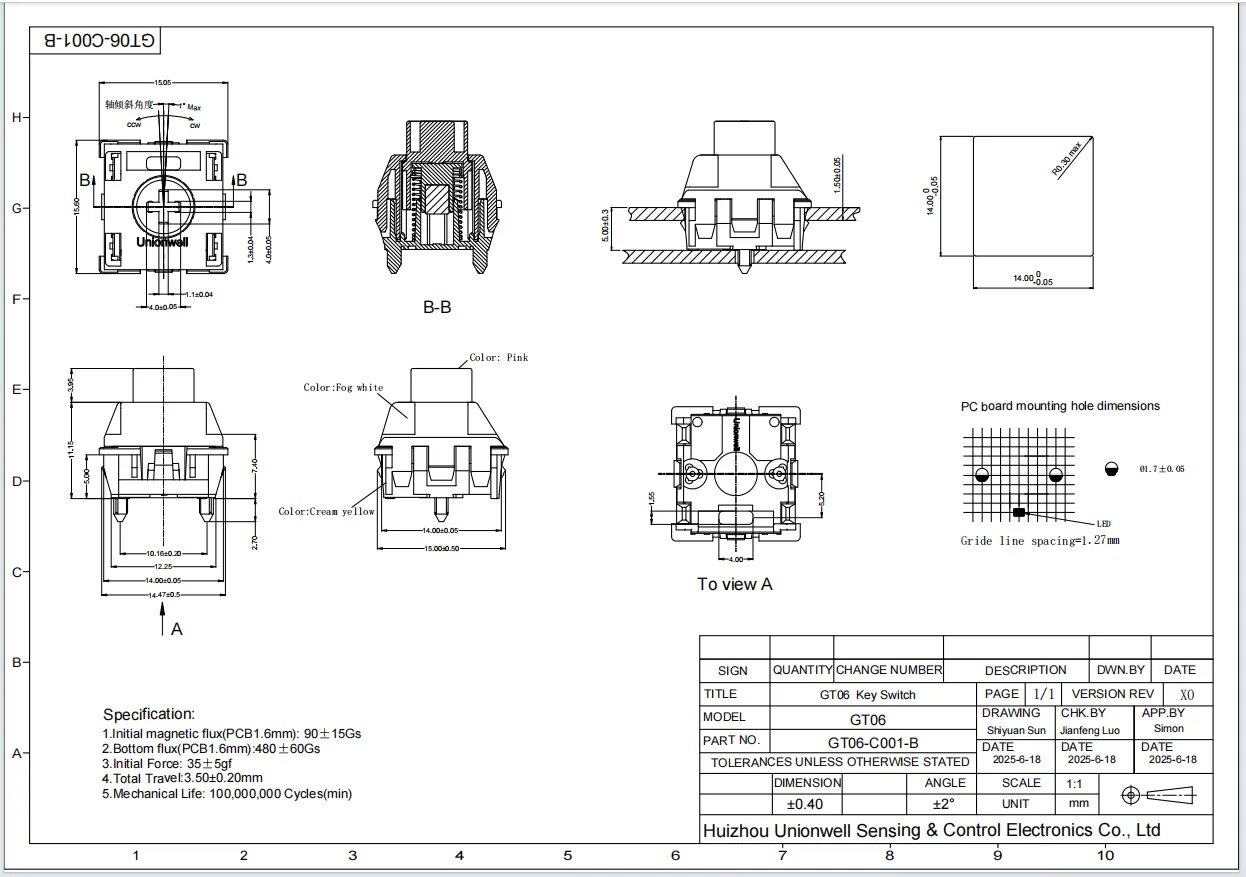

Polar Magnetic switch PRO Parameters
