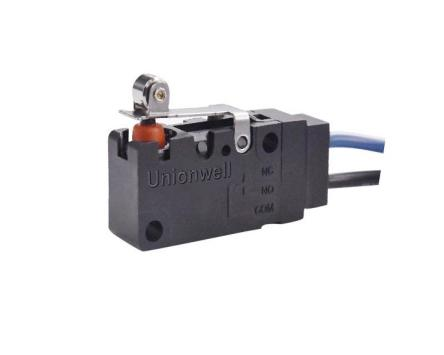

Unionwell Waterproof Micro Switch G5W11, Waterproof Push Button Micro Switch China Factory Company

Specifications of Waterproof Push Button Micro Switch G5W11

Place of Origin		Guangdong, China (Mainland)
Brand Name		Micro Switch Manufacturer Unionwell
Model Number		G5W11 Series
Operating Force		15gf/25gf/50gf/100gf/200gf
Terminal Type		Quick Connect/Lead Wires
Lever Type		No Lever/Hinge/Roller
Circuit Code		SPDT/SPST-NO/SPST-NC
Certifications		ENEC, UL/cUL, CQC
OEM/ODM		Available
Rating	W1	ENEC:0.1A,125/250VAC; 0.1A 48VDC 40T85 5E4 μ UL: 0.1A,125/250VAC; 0.1A 48VDC T85
	W2	ENEC: 0.1A,125/250VAC; 5A 48VDC 40T85 5E4 μ UL: 5A 125/250VAC,5A 30VDC T85
	W3	ENEC: 10(2)A 125/250VAC,0.5A 125VDC, 0. 25A 250VDC, 40T85, μ, 2E4 UL: 10.1A 1/10HP 125/25OVAC, 0.5A 125VDC, 0.25A 250VDC,T85
Operating Frequency	Electrical	10~30 cycles/minute
	Mechanical	60 cycles/minute
Contact Resistance(Initiative)	with Terminals	50 mΩ Max (without wire type)
	with Wires	100 mΩ Max (up to the wire length)
Insulation Resistance (at 500VDC)		100mΩ Min
Dielectric Strength	Between Terminals	AC, 1,000V 50-60Hz 1 min
	Between Terminals and Housing	AC, 1,500V 50-60Hz 1 min
Operating Temperature		-40°C~+125°C
Operating Humidity		85% RH Max
Protection Level	No Lead Wires	IEC IP67(expect terminal)
	with Lead Wires	1EC IP67
Protection Level Against Electric Shock		Class II
Life Expectancy	Electrical	20,000 cycles ~ 100,000 cycles (up to the model selected)
	Mechanical	Over 500,000 cycles or 1,000,000 cycles (60 cycles/min)
Unit Net Weight		Approx. 7g
