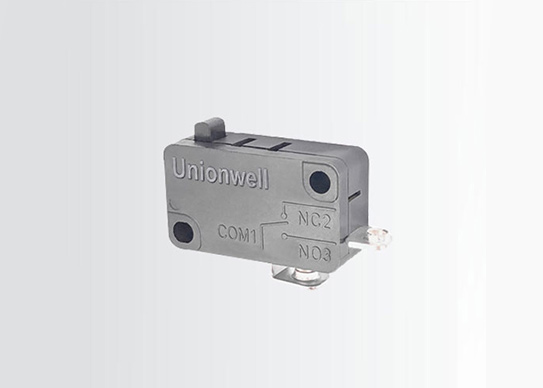

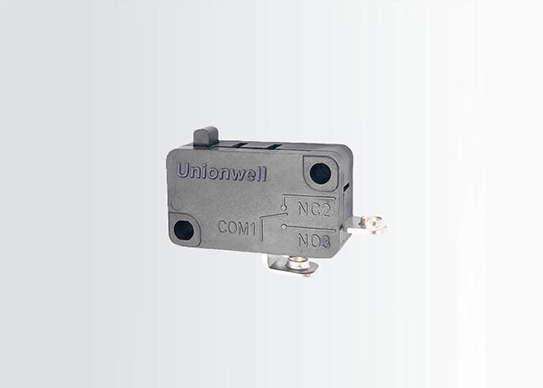

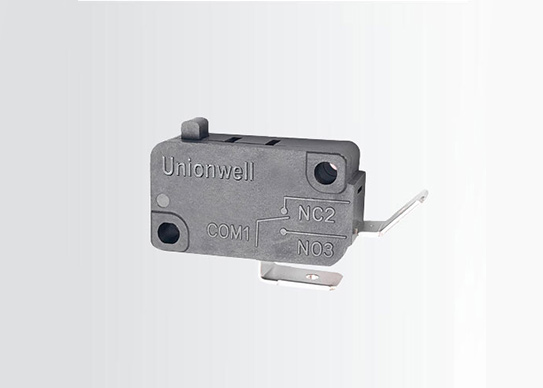

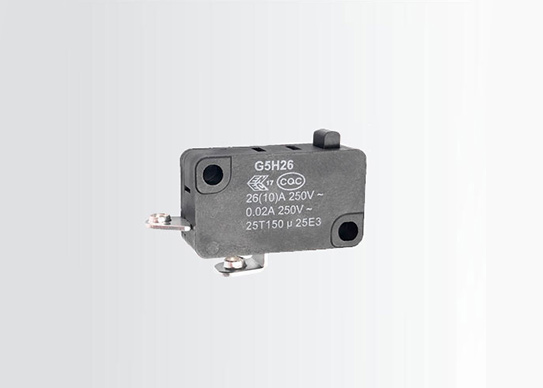

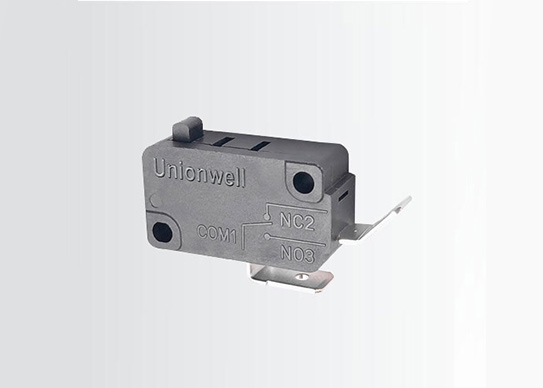

Oven Micro Switch G5H26

  • Tight configuration, small contact distance, snap action, high sensitivity, and short operating travel

  • Long life, high reliability

  • Global safety approvals

  • Variety of terminals.

  • Optional operating force varies from 100gf to 400gf

  • Wide range of operating temperatures (-25° C~+150° C)

  • With optional PT I grades (175V, 250V, 600V)

  • Variety of levers

  • Customized design with high-temperature grade to be used in electric ovens.

Specifications of Oven Micro Switch G5H26

Place of Origin Guangdong, China (Mainland)
Brand Name Unionwell
Model Oven Micro Switch G5H26
Max Operating  Force (at pin plunger) 100gf/200gf/300gf/400gf
Operating Temperature -25°C~+150°C
Terminal Type Quick Connect/PCB/Solder/Screw/Rast-5/Rast-2.5
Lever Type No Lever/Hinge/Simulated Roller/Roller/Special

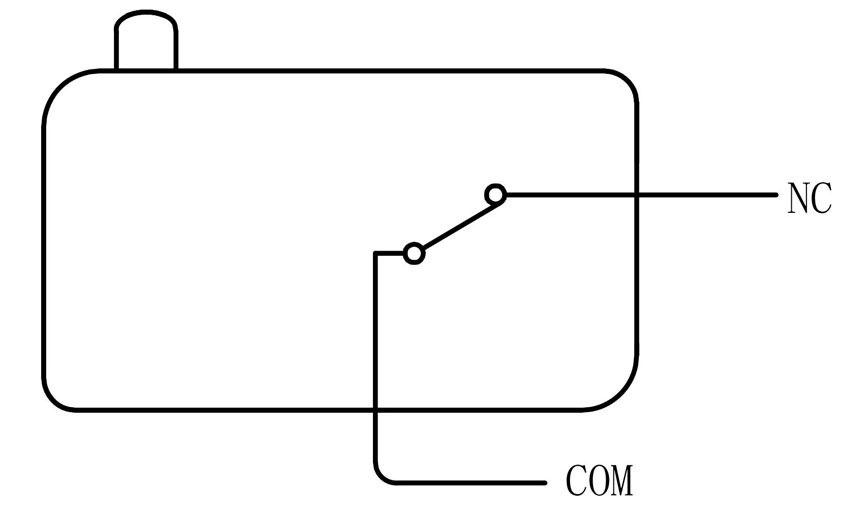

Circuit Code SPDT/SPST-NO/SPST-NC
Certifications ENEC, UL/cUL, CQC
OEM/ODM Available
Operating  Linear Speed 0.1~1m/s (up to the actuating method)
Operating  Frequency Mechanical 60 cycles/min; Electrical 15 cycles/min
Insulation Resistance ≥100MΩ(500 VDC)
Contact Resistance (Initial Value) ≤100mΩ
Voltage Resistance between terminals AC1000V,50/60Hz,1min.
Between electrified metal parts and housing, and between terminals and unelectrified metal parts AC1500V,50/60Hz,1min.
Vibration Durability 10-55Hz Double amplitude 1.5mm
Shock Resistance Destruction: OF>1.0N: 1000m/s2 (approx. 100G) max.
                         OF≤1.0N: 400m/s2 (approx. 40G) max.
Destruction: OF>1.0N: 200m/s2 (approx. 20G) max.
                     OF≤1.0N: 100m/s2 (approx. 10G) max.
Service Life Mechanical ≥ 10,000,000 cycles or 1,000,000 cycles
Electrical ≥50,000 cycles or 100,000 cycles
Unit Net Weight Approx. 6.2g (No Lever)


Products

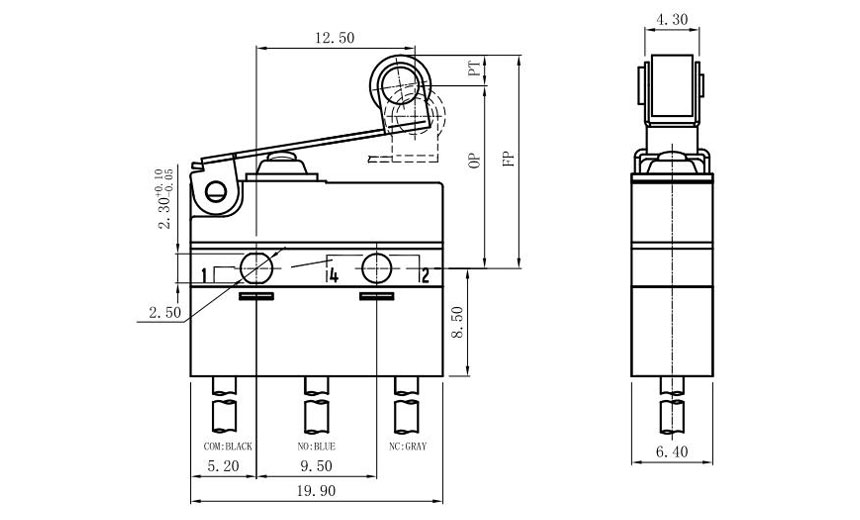

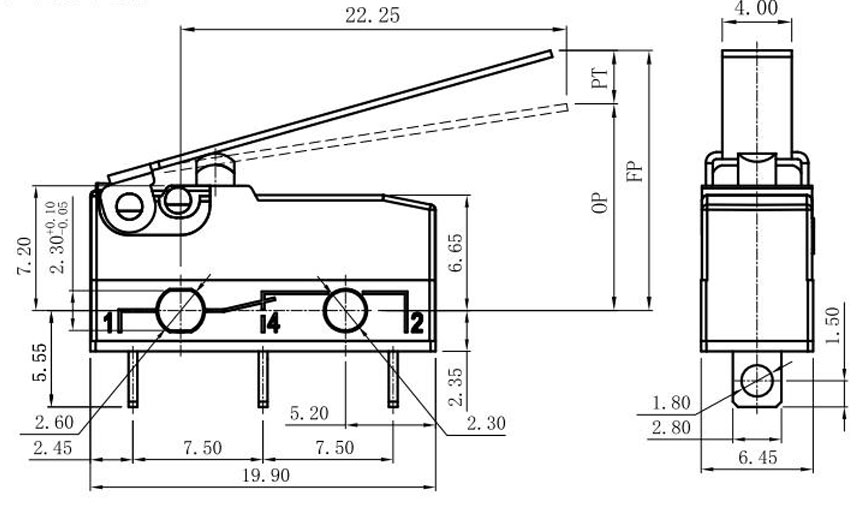

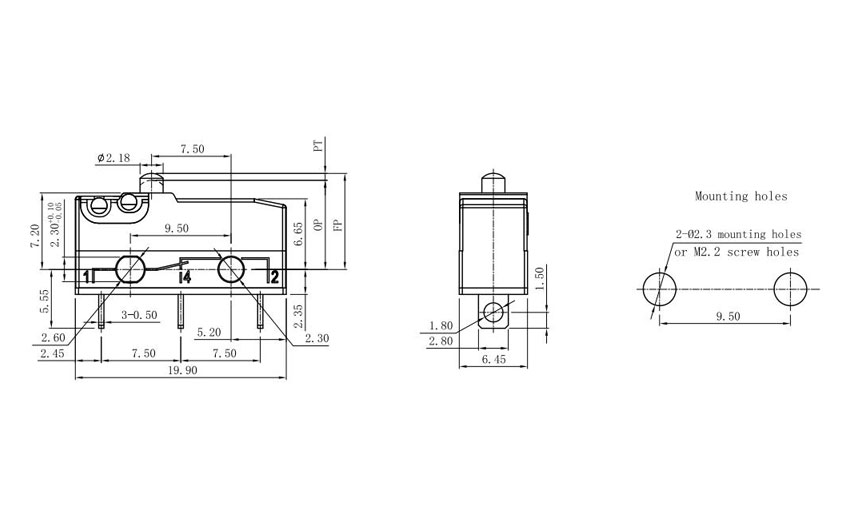

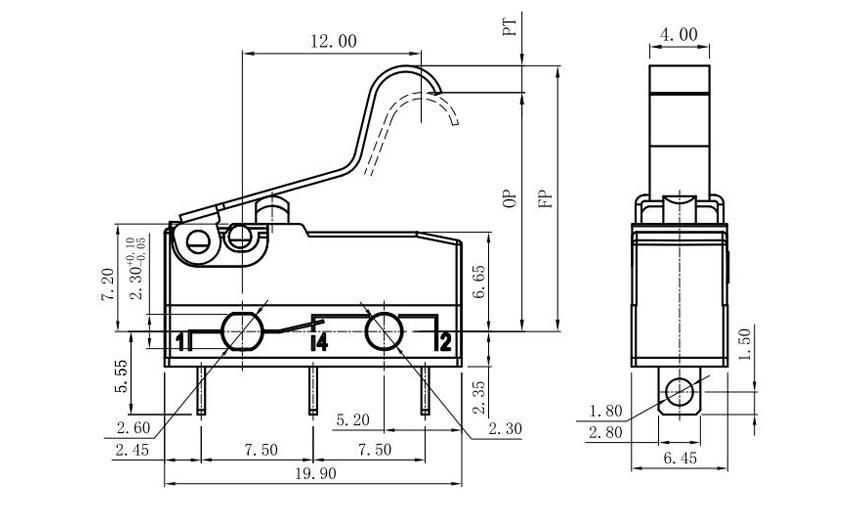

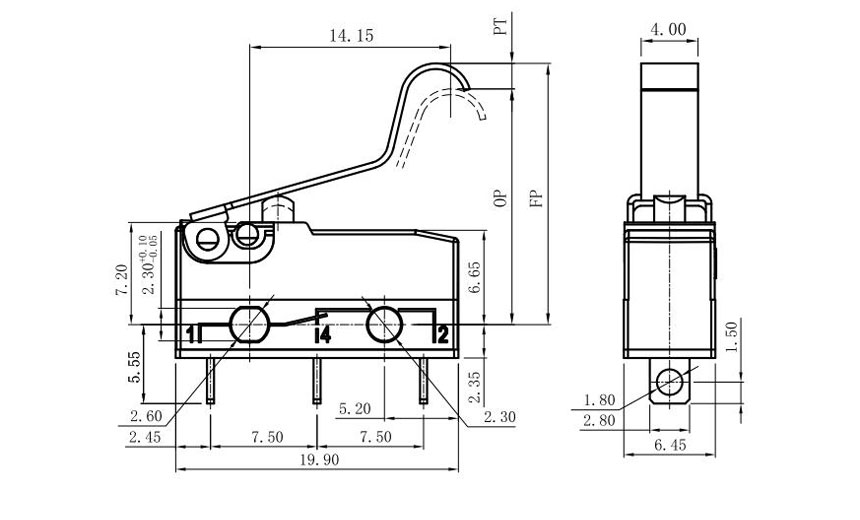

Product Drawing of Oven Micro Switch G5H26
