DPDT Micro Switch G21
4 pin micro switch wiring diagram
4 pin micro switch wiring diagram
4 pin push button micro switch
double micro switch g21
micro switch schematic
micro switch working
micro switch wiring diagram
microswitch pinout
snap action switch wiring

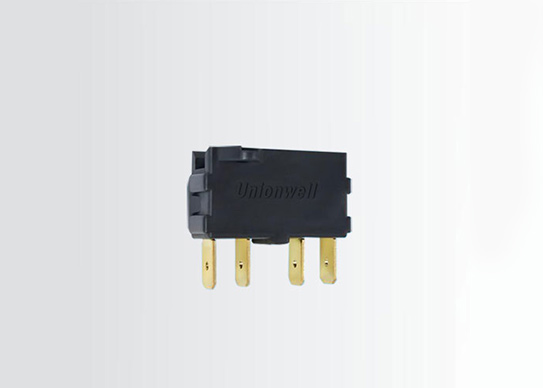

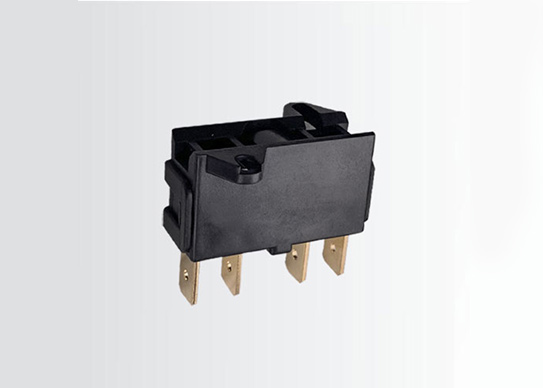

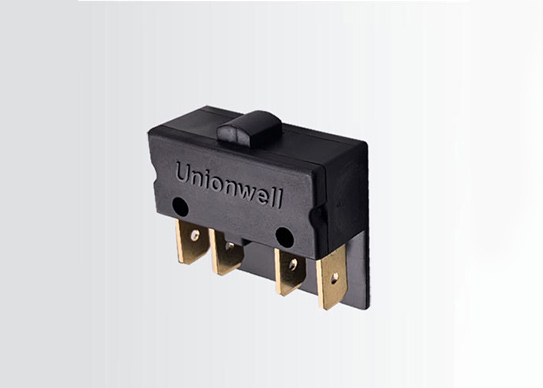

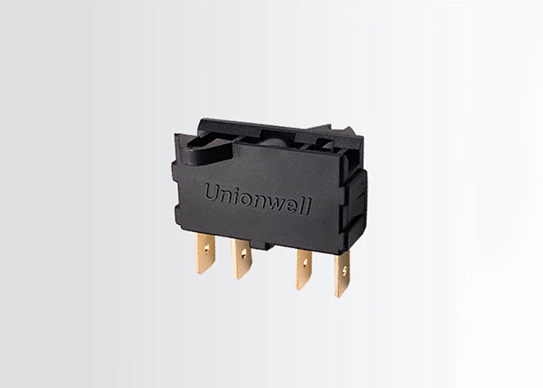

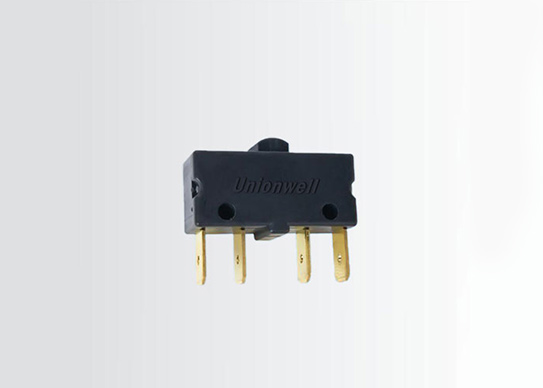

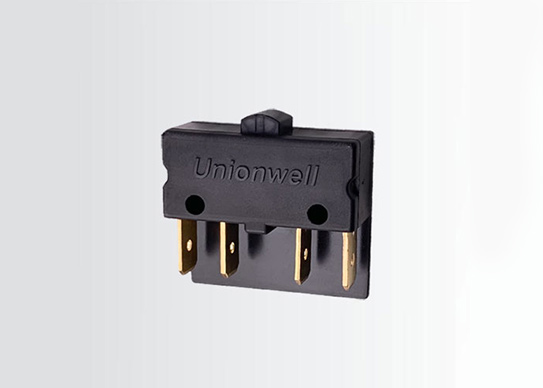

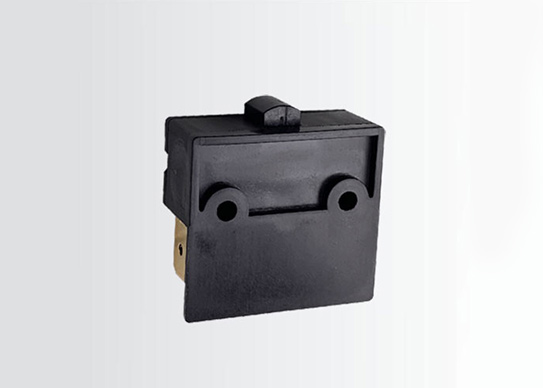

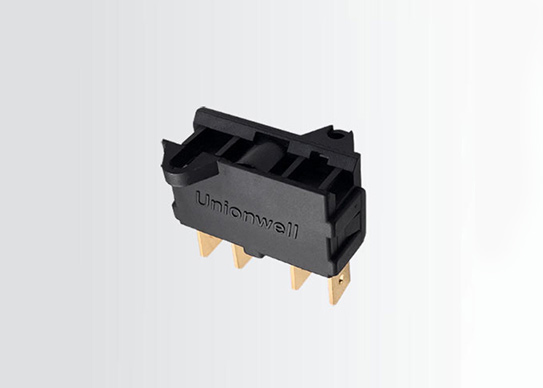

DPDT Micro Switch G21

  • Long life and high reliability

  • DPDT double-break circuit

  • Widely used in industry control

Quote Datasheet

Specifications of DPDT Micro Switch G21

Place of OriginGuangdong, China (Mainland)
Brand NameUnionwell
Model NumberG21
Max Operating  Force (at pin plunger)250gf
Terminal TypeSolder/PCB
Lever TypeNo Lever/Others
Circuit CodeSPST-NO/SPST-NC
CertificationsENEC, UL/cUL, CQC
OEM/ODMAvailable
RatingDC14: 6A 12VDC; 2A 24VDC 0.6A 55VDC
Operating FrequencyElectrical60 cycles/minute
Mechanical180 cycles/minute
Contact Resistance(Initiative)100mΩMax
Insulation Resistance (at500VDC)100MΩ Min
Service LifeElectrical1000,000 cycles
Mechanical3000,000 cycles
Storage Temperature-30°C 〜+85°C
Storage Humidity95%RH Max
Operating Temperature Range-30°C 〜+65°C


Products

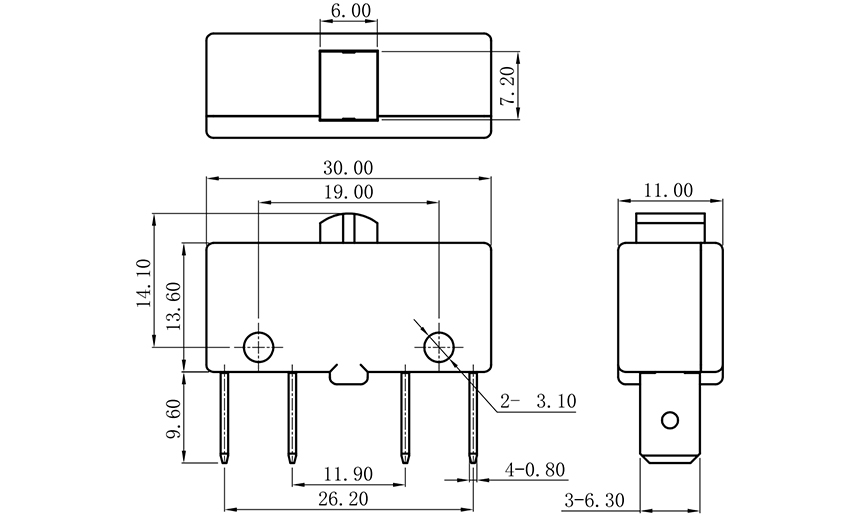

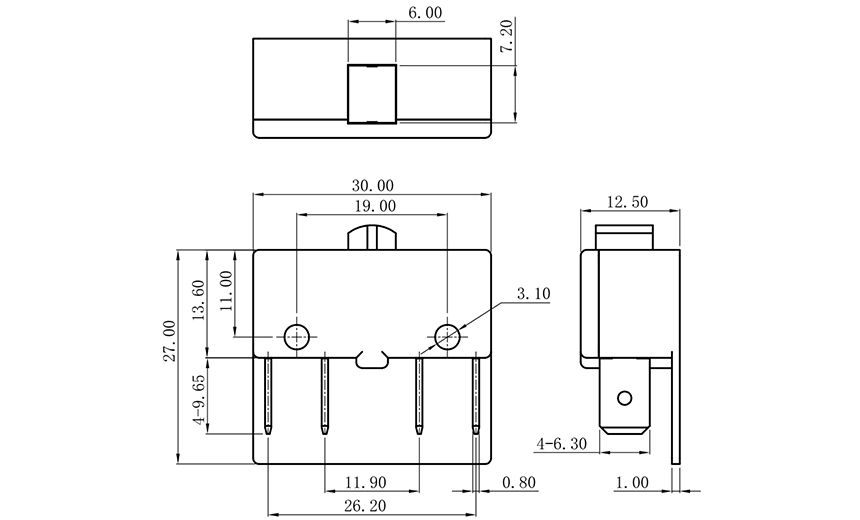

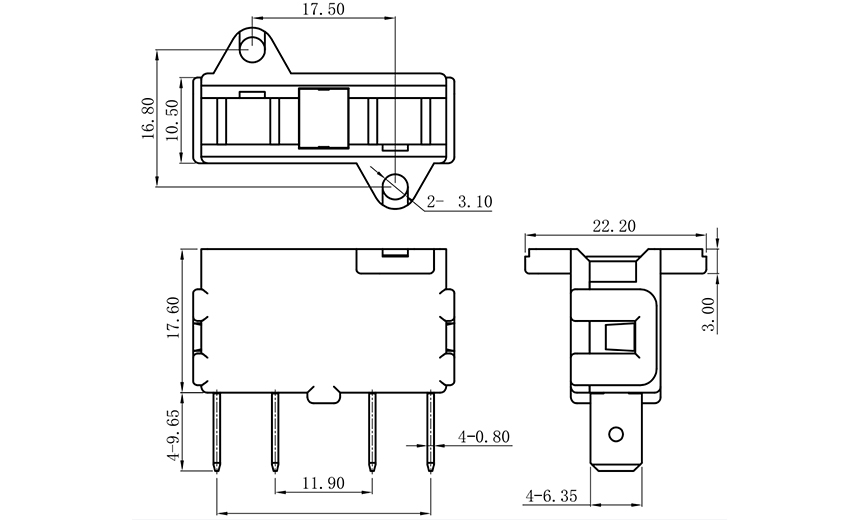

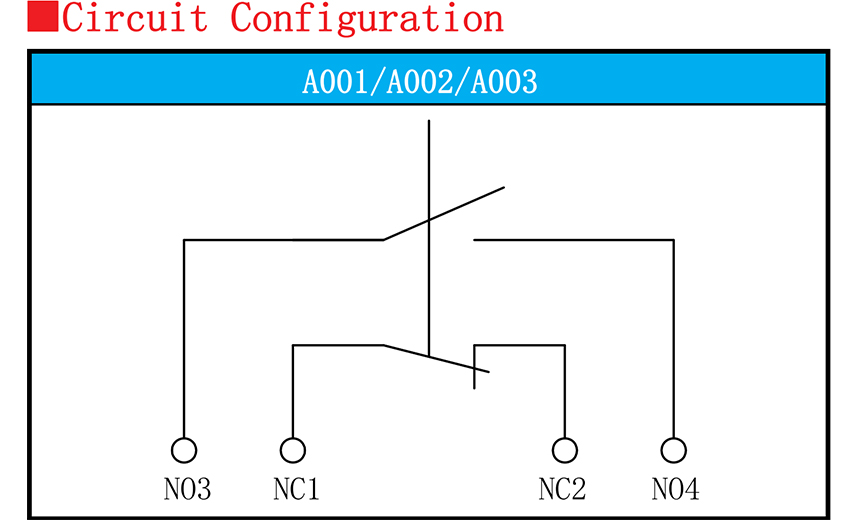

Product Drawing of DPDT Micro Switch G21

4 pin push button micro switch 2
4 pin push button micro switch
4 pin push button micro switch 4
4 pin push button micro switch 3

DPDT Micro Switch G21 Related Applications

Unionwell Micro Switch Contributes to Industrial Automation
Industrial Control
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular Double Pole Double Throw Micro Switch

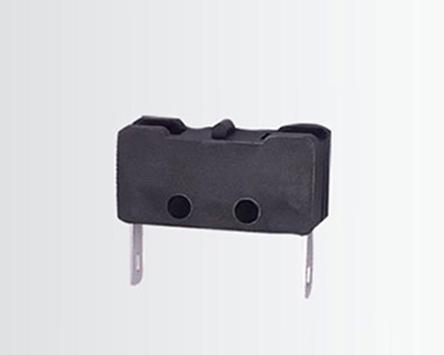

DPDT Micro Switch G606
DPDT Micro Switch G606

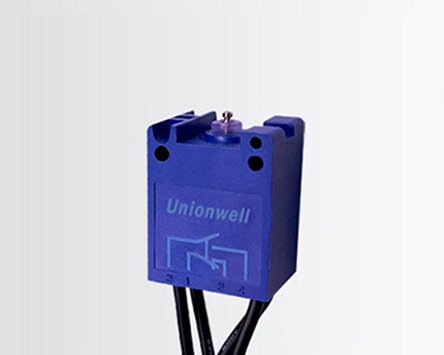

DPDT Sealed Micro Switch G11
