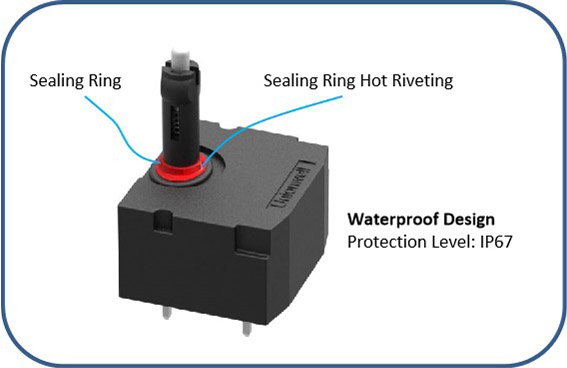

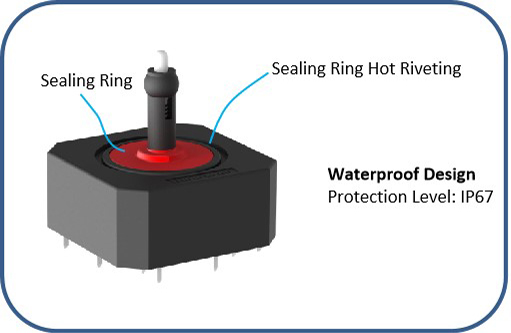

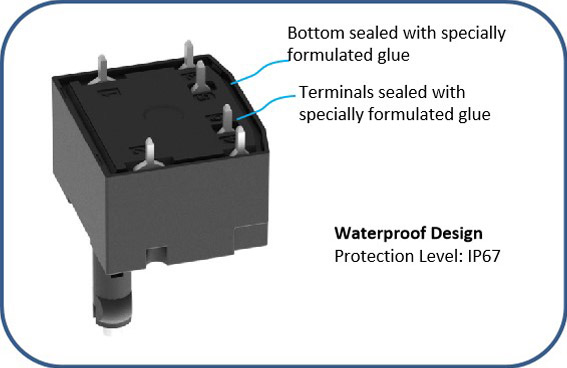

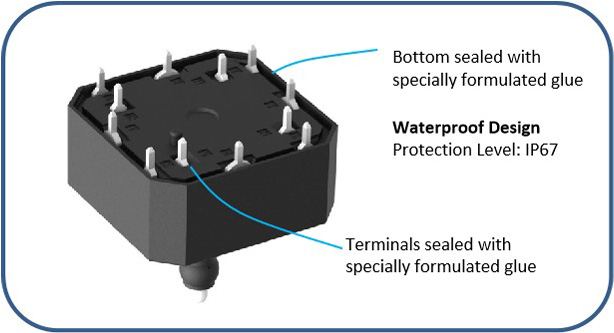

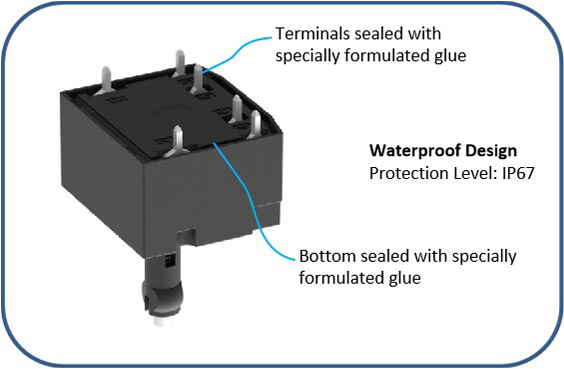

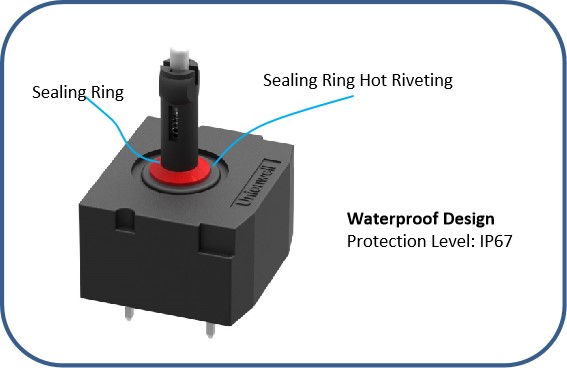

Sealed design, IP67 protection level, applicable in different extreme environments;
Multiple operating sticks and heights, could be tailored for different vehicle models;

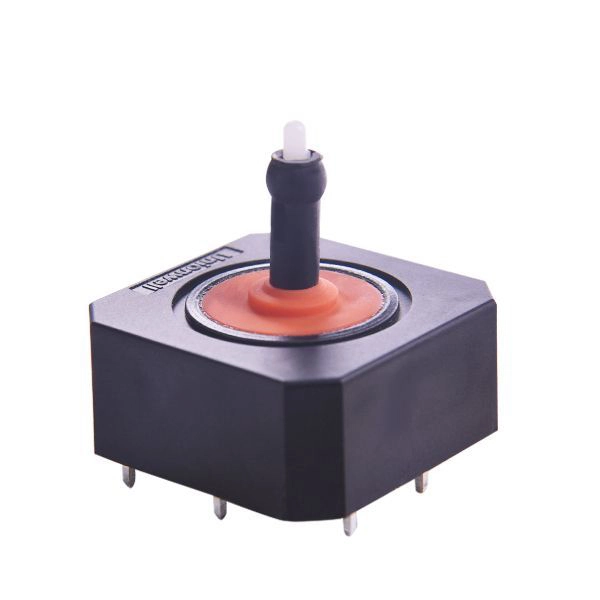

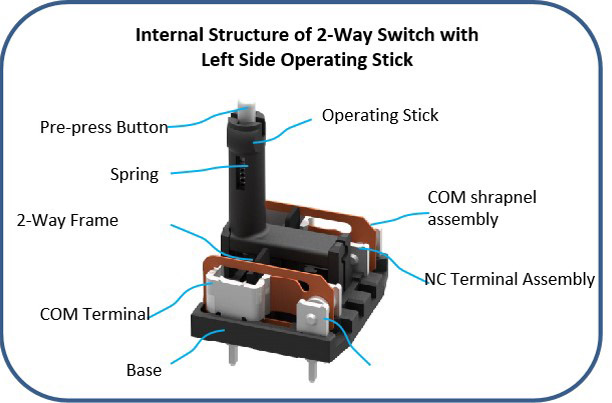

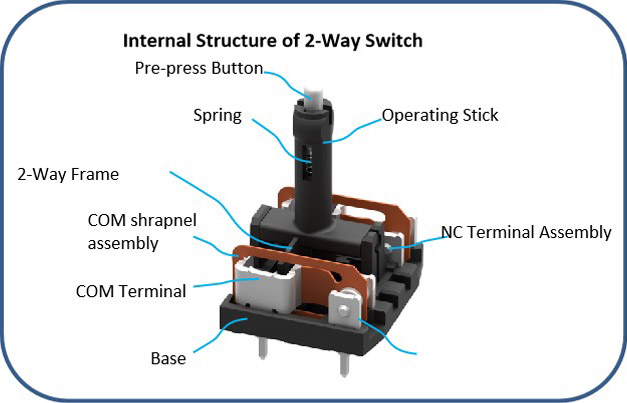

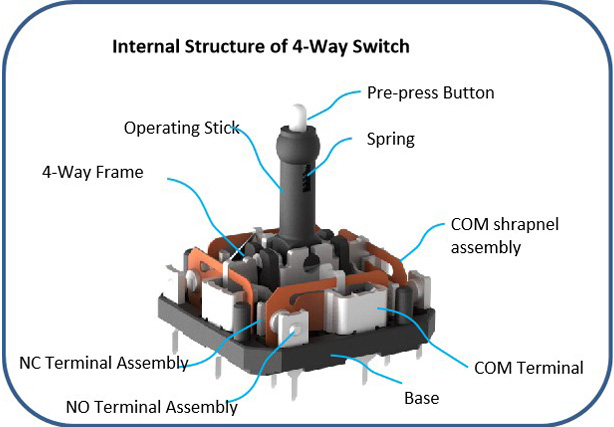

Tight structure, two-way or four-way switching accomplished;
High-performance spring, high-sensitive switching and long service life;
Invention patented products, Patent Number: 202221925967.7 202210879810.3
| Operating Frequency | 10 cycles/minute | |
| Initial Contact Resistance | 20mΩ Max | |
| Insulation Resistance | 100mΩ Min | |
| Resistance Voltage | Between Insulated Terminals | AC500V（50~60HZ）, Leak Current 10ms, 60±5s |
| Between Terminals and Housing | AC1000V（50~60HZ）,Leak Current 10ms, 60±5s | |
| Life Expectancy | Electrical | 15A 14VDC 30,000 Cycles |
| Mechanical | 50,000 Cycles | |
| Protection Level IP67(exposed terminals excepted) | IP67(exposed terminals excepted) | |
| Operating Temperature -40～+85°C | -40～+85°C | |
| Operating Humidity | <95%RH（+5～+35°C） | |

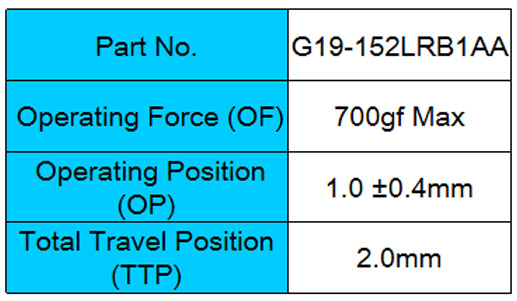

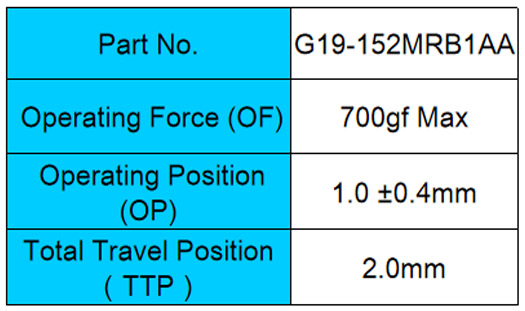

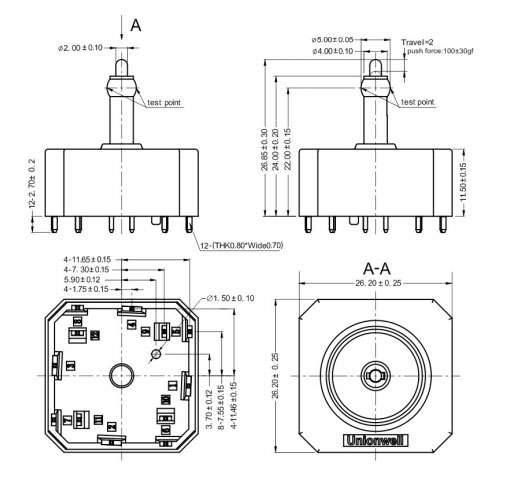

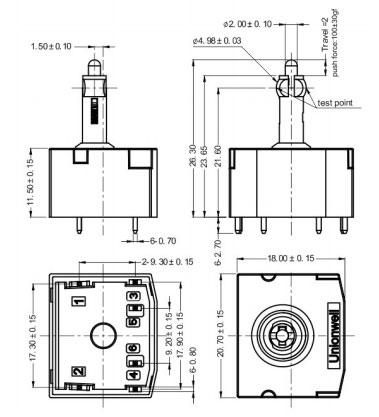

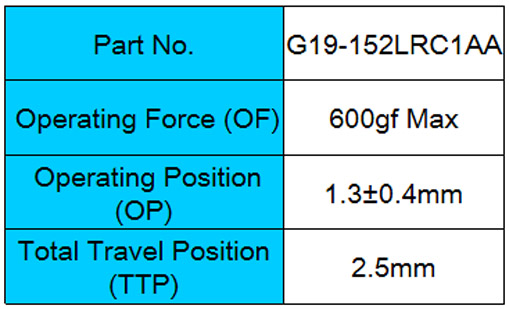

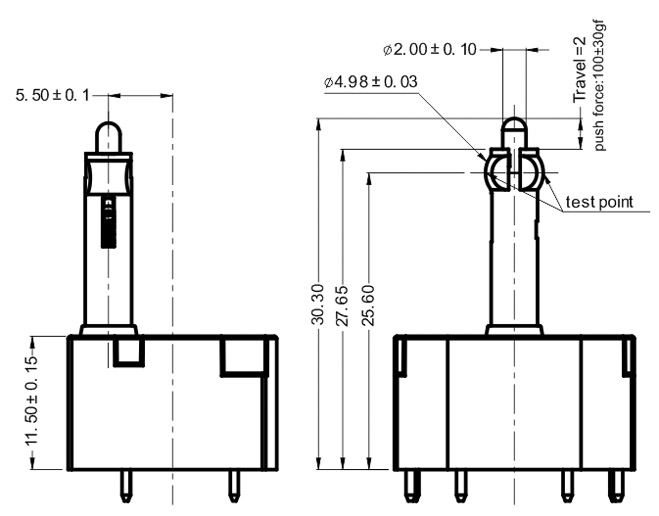

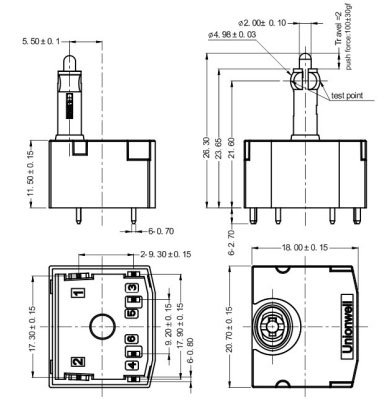

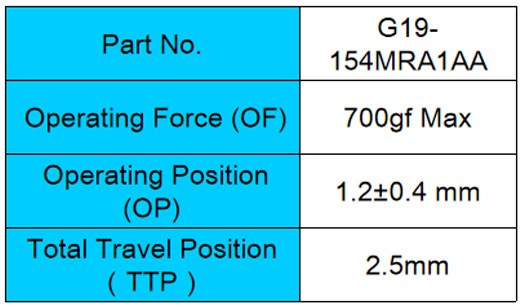

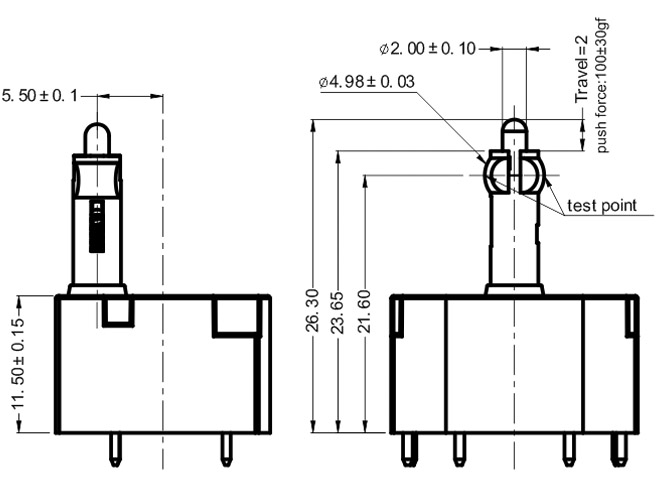

Stick Code | Stick Height | Stick Assembly Dimensions | Operating Parameters |
A | 22mm |  |
|
B | 21.6mm |  |
|
C | 25.6mm |  |
|
| Stick Code | Stick Height | Stick Assembly Dimensions | Operating Parameters |
B | 21.6mm | |
|
C | 25.6mm | |
|

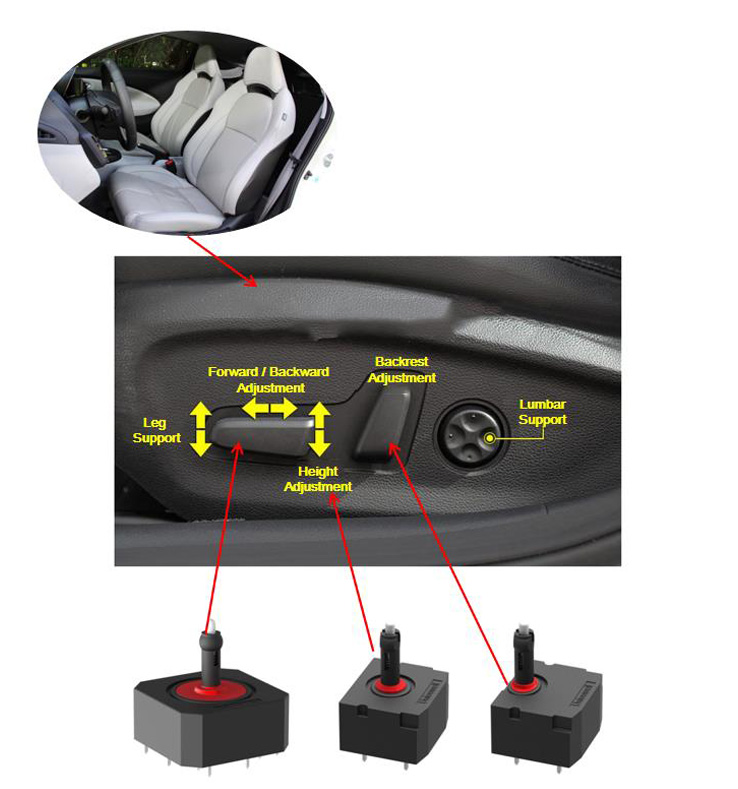

The application of car seat adjustment switches:
An automotive electric seat consists of parts including 2-way motor, transmission device and seating adjuster etc. The 2-way motor helps accomplish the forward/backward, up/down or other adjustments of seat, all the functions mentioned above are achieved through the operation on car seat adjustment switches.
