G20 Seat Belt Reminder Switch

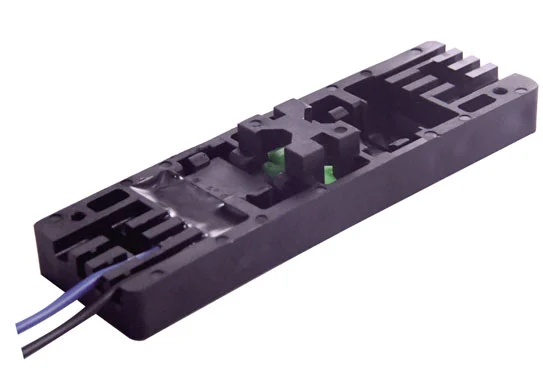

g20 seat belt reminder switch1
g20 seat belt reminder switch1

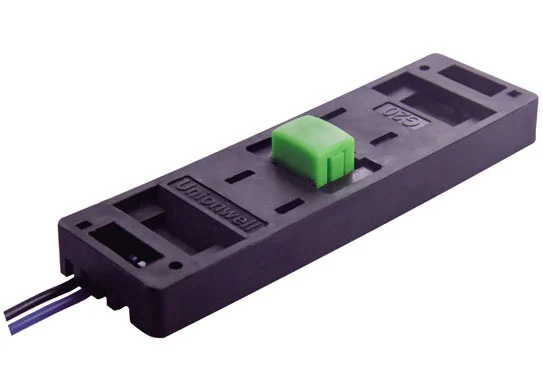

g20 seat belt reminder switch2

G20 Seat Belt Reminder Switch

  • Small size, compact structure, high reliability and long service life.

  • Mainly used in micro-current load industries such as car seat and electronic equipment.

  • Variety of built-in resistor structure options.

Quote Datasheet

Specifications of G20 Seat Belt Reminder Switch

Rating5 ~ 1000mA 4 ~48VDC (up to different resistance selection)
Operating FrequencyMechanical120 cycles/min
Electrical10~30 cycles/min 1~500mm/s
Initial Contact Resistance100mΩ Max. (single switch, excluding resistors)
Insulation Resistance100MΩ Max. (single switch, excluding resistors)
Dielectric StrengthBetween terminals: AC 500V (single switch, excluding resistors)
Between terminals and housing: AC 1000V
Operating Temperature-40°C~ +85°C
Service LifeMechanical300,000 cycles
Electrical1,000,000 cycles


Products

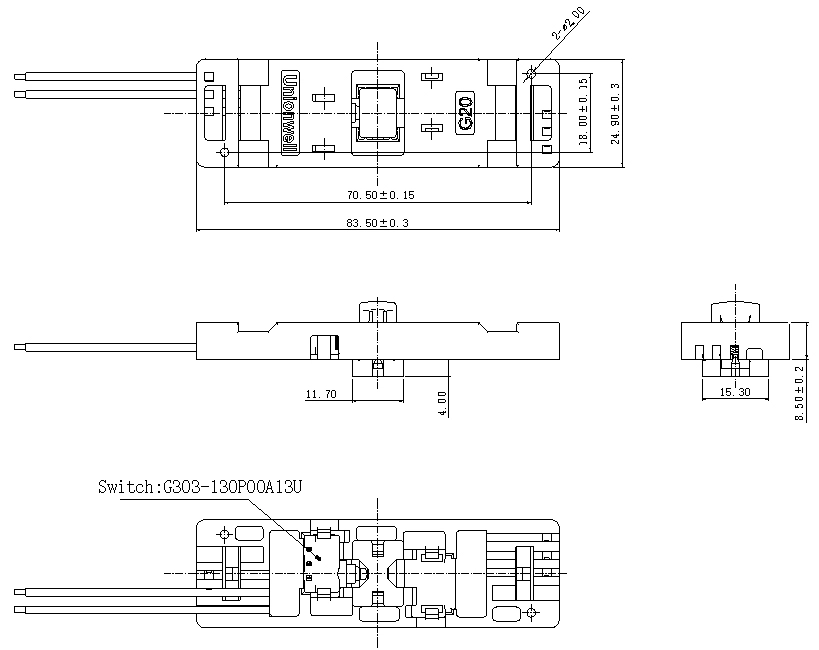

Product Drawing of G20 Seat Belt Reminder Switch

g20 drawing

G20 Seat Belt Reminder Switch Application

Custom Mini Waterproof Micro Switches Used in Automotive Industry
Automotive
