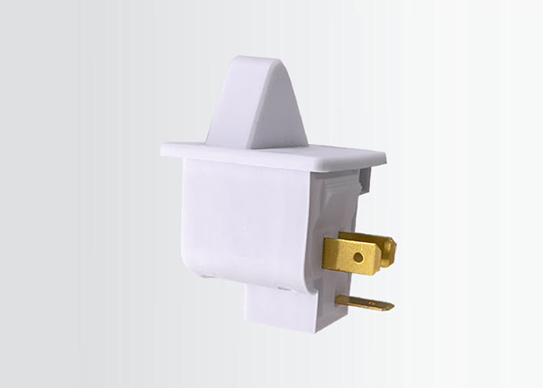

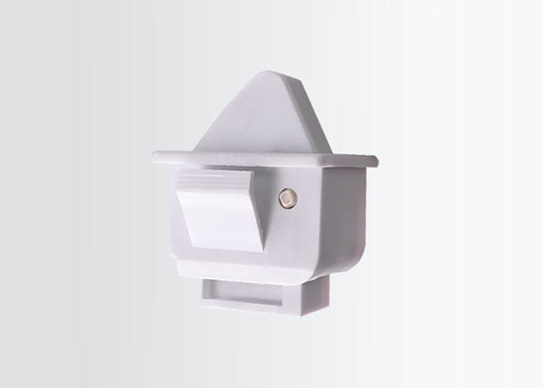

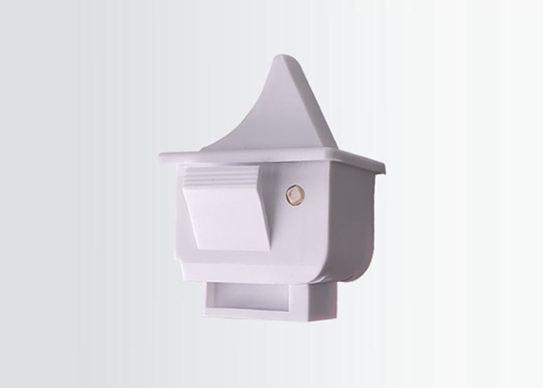

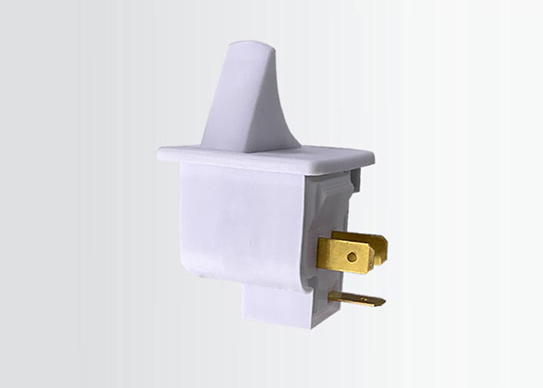

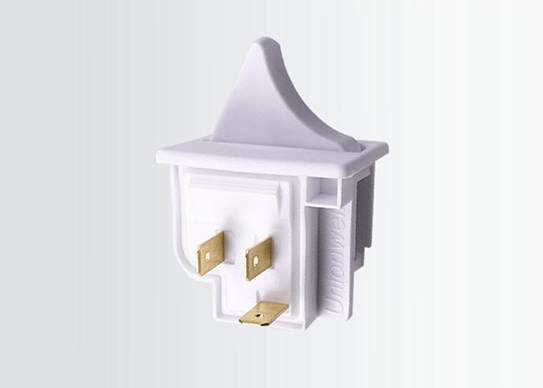

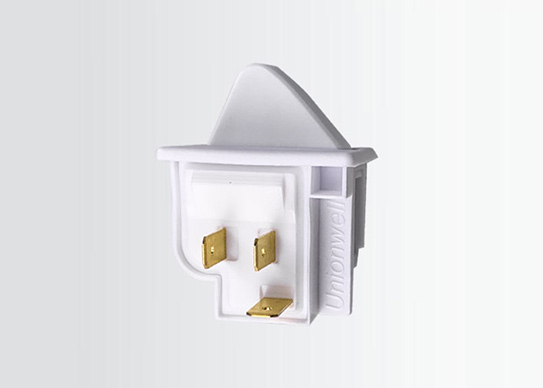

Sealed Explosion Proof Fridge Door Micro Switch SWD
atex screw terminal micro switch
atex screw terminal micro switch
explosion proof micro switch
micro switch atex
switch fridge door side
switch fridge door
waterproof door switch

Sealed Explosion Proof Fridge Door Micro Switch SWD

Two possibilities for electrical load: high current load for light control or signal current load for signal control. Fully sealed, explosion-proof with ATEX certification. Widely used in refrigeration equipment and appliances, including heat pumps, air conditioners, dehumidifiers, refrigerators, etc. Universal quick installation setting.

Quote Datasheet

Specifications of Sealed Explosion Proof Fridge Door Switch SWD

Place of OriginGuangdong, China (Mainland)
Brand NameUnionwell
Model NumberSWD01A/ SWD06A
Max Operating  Force (at pin plunger)150gf/Others
Terminal TypeWires/Solder/PCB/Others
Lever TypeNo Lever/Leaf Lever/Hinge Lever/Simulated Roller

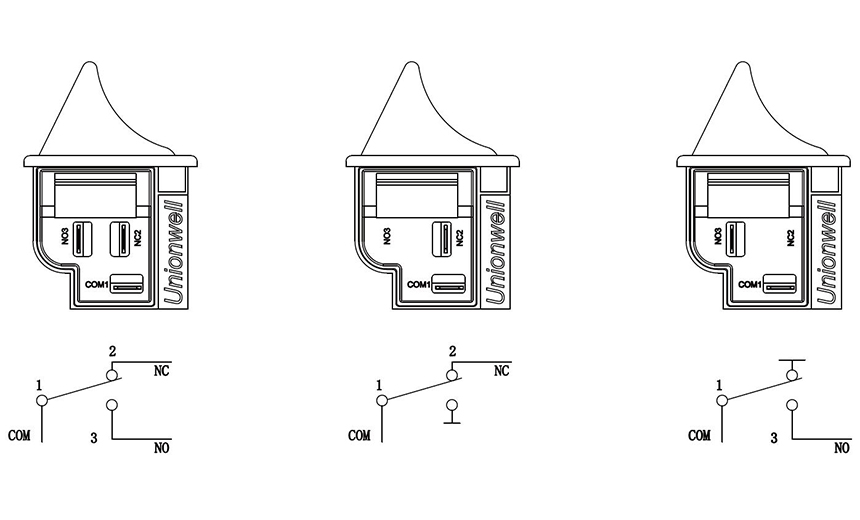

Circuit CodeSPDT/SPST-NO/SPST-NC
CertificationsENEC, UL/cUL, CQC
OEM/ODMAvailable
Operating  Linear Speed7.5~500mm/s
Operating  FrequencyMechanical60 cycles/min
Electrical20 cycles/min
Insulation Resistance≥100MΩ (500VDC Insulation Resistance Meter)
Contact Resistance (Initial Value)with terminals≤100mΩ
Voltage Resistancebetween terminalsAC1000V, 50/60Hz, 1min.
between terminals and unelectrified metal partsAC1500V, 50/60Hz, 1min.
Vibration Durability10-55Hz Double amplitude 1.5mm
Service LifeElectrical2.5A 125/250VAC 25T85 μ 5E4
6A 125/250VAC 25T85 μ 1E4
0.1A 125/250VAC 0.1A 30VDC 25T85 μ 5E4
Mechanical300,000 cycles（60 cycles/min）

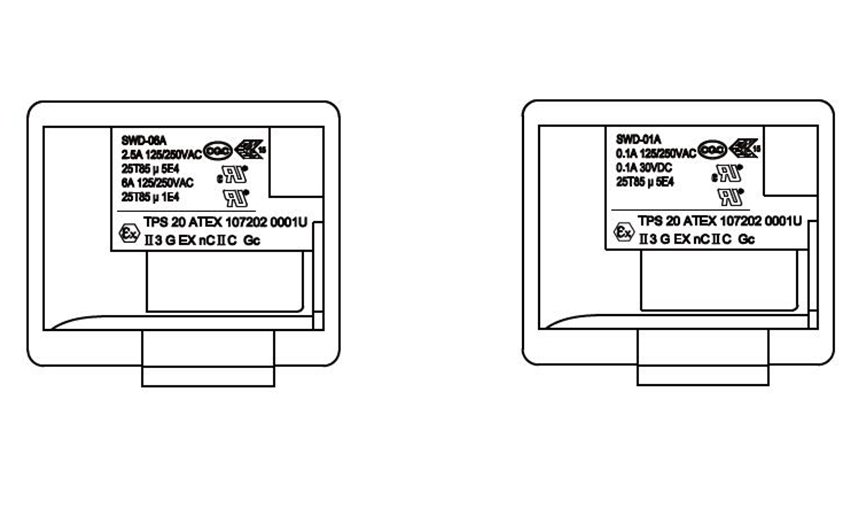

ATEX Proof and Certificate NumberS 20 ATEX 107202 0001U
3 G EX nC II C Gc
PTI450V
Operating  Temperature-25~+85°C
Operating  Humidity95% RH Max


Products

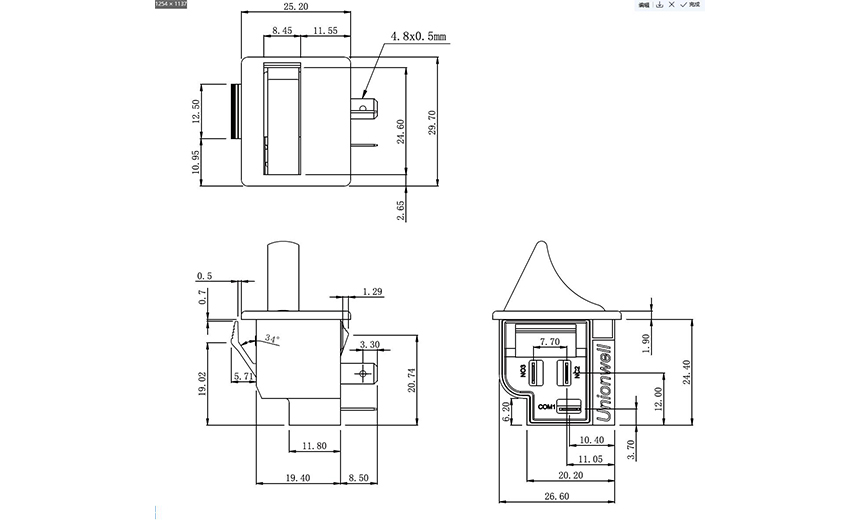

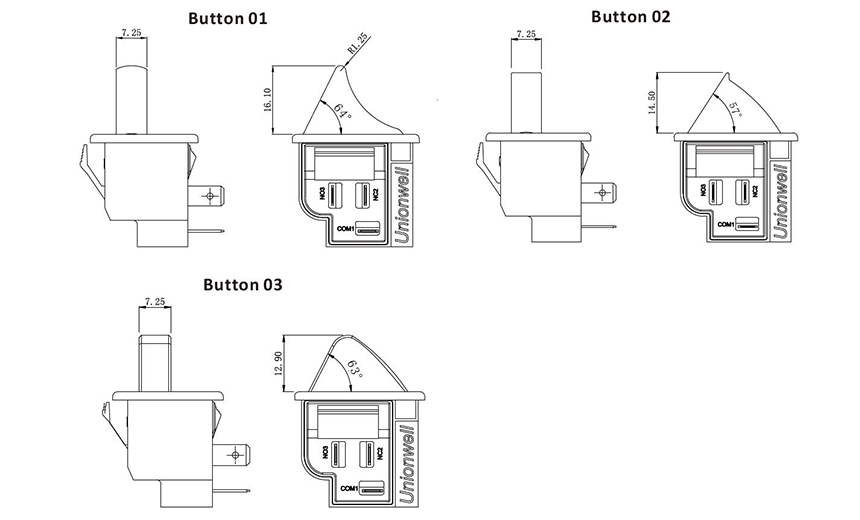

Product Drawing of Sealed Explosion Proof Fridge Door Micro Switch SWD

atex snap action micro switch
micro switch atex
explosion proof micro switch
explosion proof door switch

Sealed Explosion Proof Fridge Door Micro Switch Related Applications
