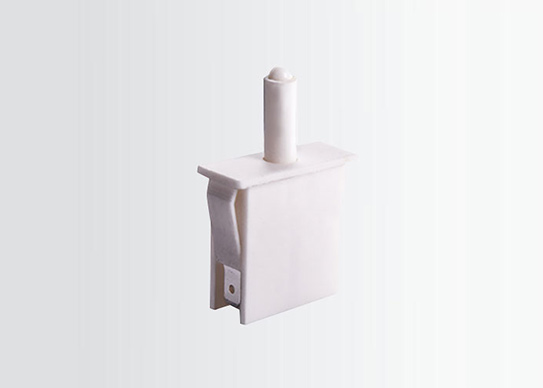

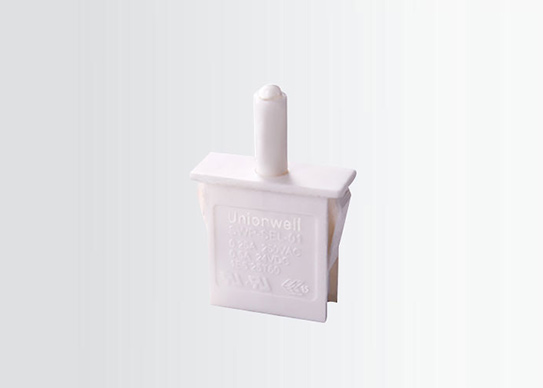

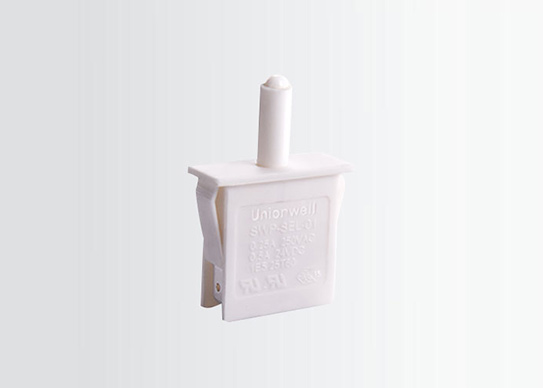

Door Micro Switch SWP
fridge door light switch
fridge door light switch
refrigerator door light switch
refrigerator light switch

Door Micro Switch SWP

  • Single pole circuit configuration

  • Small size and compact structure

  • Ultra-long travel

  • UL/ENEC certified

Quote Datasheet

Specifications of Door Micro Switch SWP

Place of OriginGuangdong, China (Mainland)
Brand NameUnionwell
Model NumberSWP Series
Max Operating  Force (at pin plunger)200gf/Others
Terminal TypeSolder
Lever TypeNo Lever
Circuit CodeSingle Pole
CertificationsENEC, UL/cUL, CQC
OEM/ODMAvailable
Rating0.25A, 250VAC; 0.5A 24VDC
Operating FrequencyElectrical10~30 cycles/minute
Mechanical120 Cycles/minute
Tracking ResistancePTI 250°C
Glow Wire850°C
Contact Resistance(Initiative)100mΩ Max
Insulation Resistance (at 500VDC)100mΩ Min
Operating  Temperature-20° C"+60° C
Operating  Humidity10%~85%RHMax
Life ExpectancyElectrical100,000 cycles
Mechanical200,000 cycles


Products

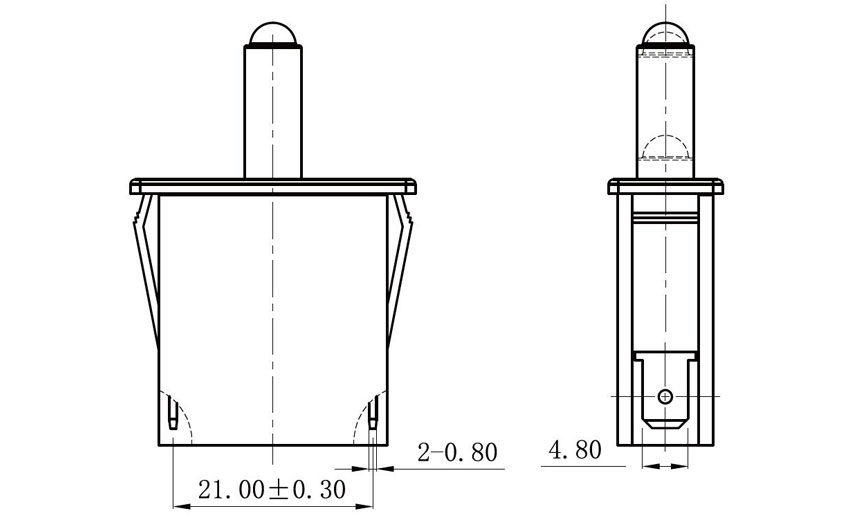

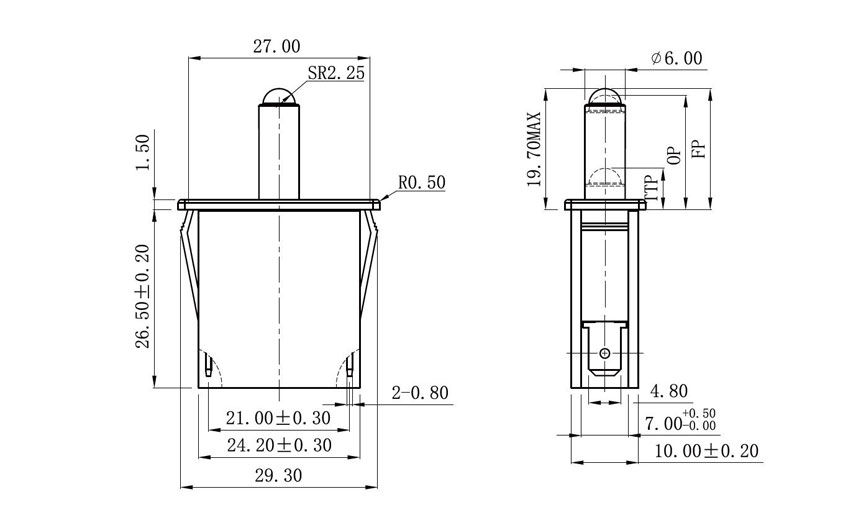

Product Drawing of Door Micro Switch SWP

closet light door switch
240v door switch
120v door switch
120 volt magnetic door switch

Door Micro Switch SWP Related Applications

Home Appliances and Micro Switches
Home Appliances
