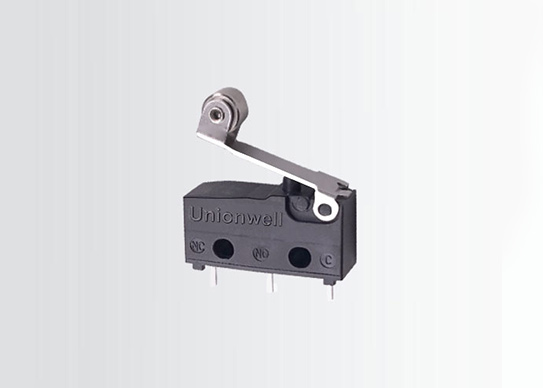

Mini Micro Switch G91
micro limit switch with roller
micro limit switch with roller
micro switch roller type
miniature limit switch roller actuator
roller microswitch
micro switch roller
roller micro switch

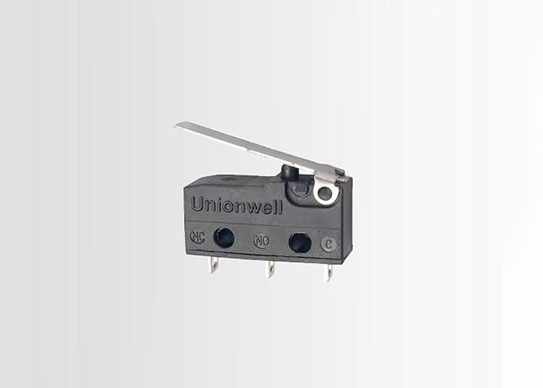

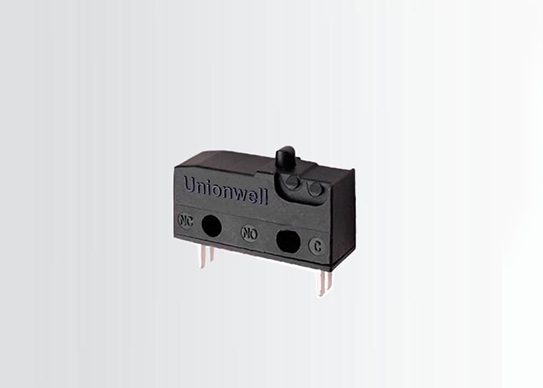

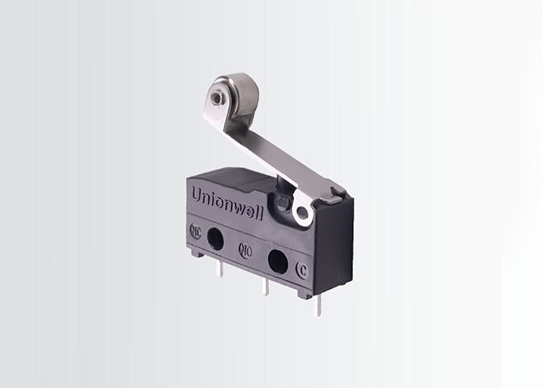

Mini Micro Switch G91

  • Small compact dimensions

  • Long service life and excellent reliability

  • Multiple levers and terminals

  • Applications include auto control, appliance and industry control, etc.


As a leading micro switch manufacturer with ISO9001, IATF16949, and ISO14001 certifications, Unionwell offers the roller microswitch that ensures superior quality and reliable service.

Quote Datasheet

Specifications of Mini Micro Switch G91

Place of OriginGuangdong, China (Mainland)
Brand NameMicro Switch Manufacturer Unionwell
ModelMini Micro Switch G91
Operation Force100gf/150gf/250gf/300gf
Terminal TypeSolder/PCB/Quick Connect
Lever TypeNo Lever/Pin Plunger/Cambered Surface/Straight/Simulated Roller/Roller
Circuit CodeSPDT/SPST-NO/SPST-NC
CertificationsENEC, UL/cUL, CQC
OEM/ODMAvailable
RatingP10.1A,125/250V  48VDC
Gold Plated Contact Optional
05ENEC: 5A 125/250VAC; 5A 1/8HP, 125/250VAC
10ENEC: 10(1.5A) 125/250VAC; UL:10A 1/4HP 125/250VAC
Operating FrequencyElectrical10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance(Initiative)100mΩ Max
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric strengthAC, 1,000RMS(50-60Hz)
Operating Temperature-40°C~+125°C or -40°C~+85°C
Operating Humidity85% RH Max
Life ExpectancyElectrical10,000-100,000 cycles (depending on specific model selection)
Mechanical500,000 cycles


Products

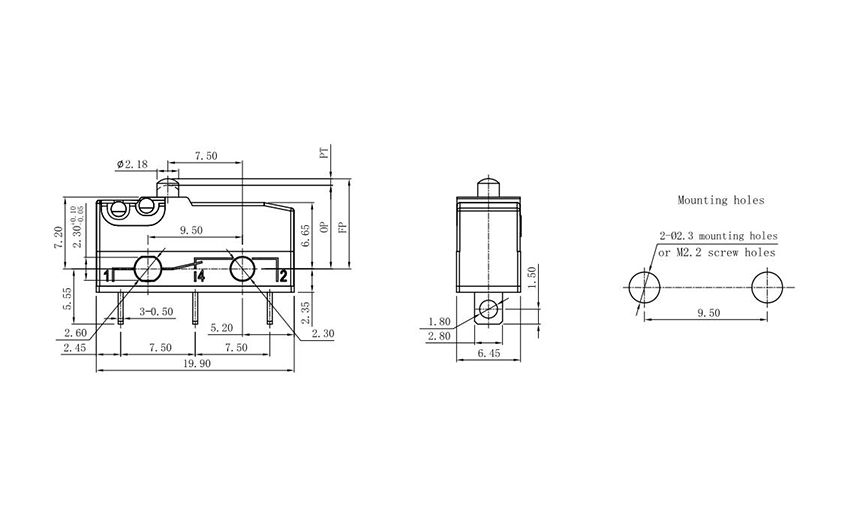

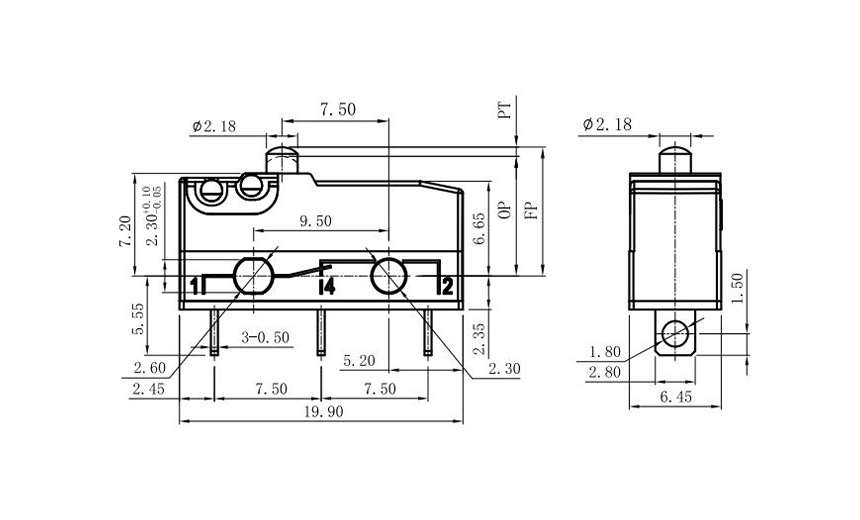

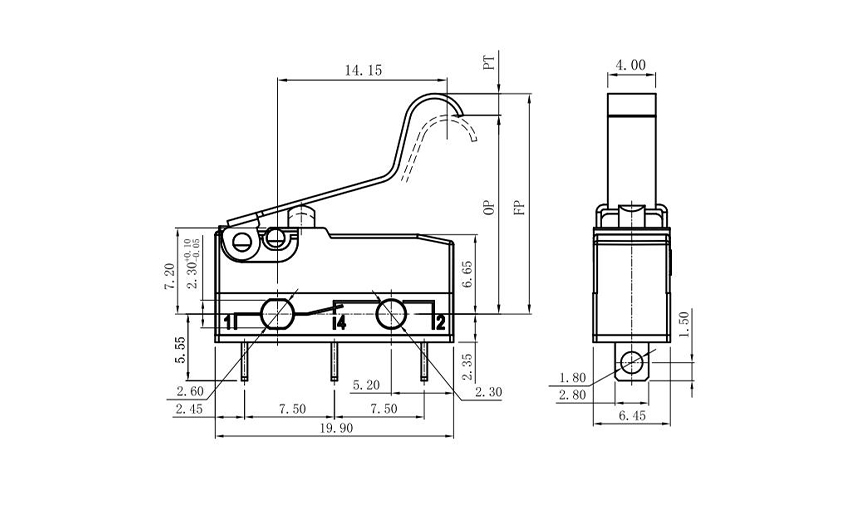

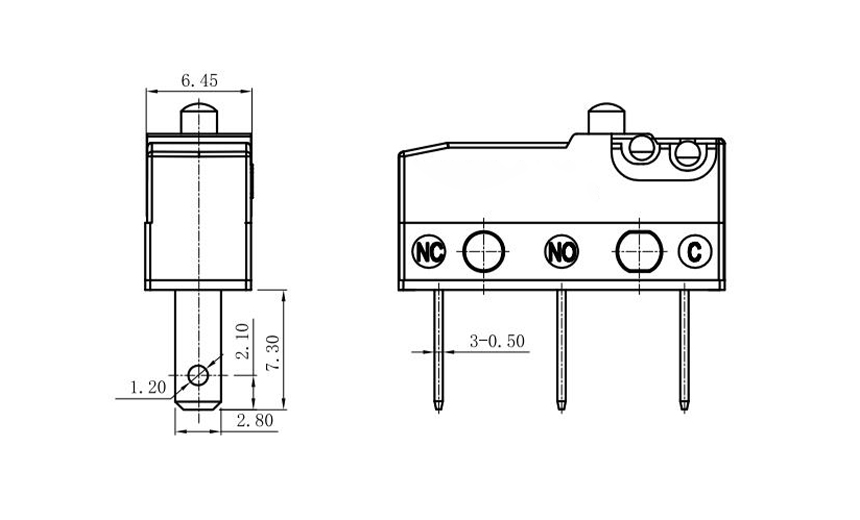

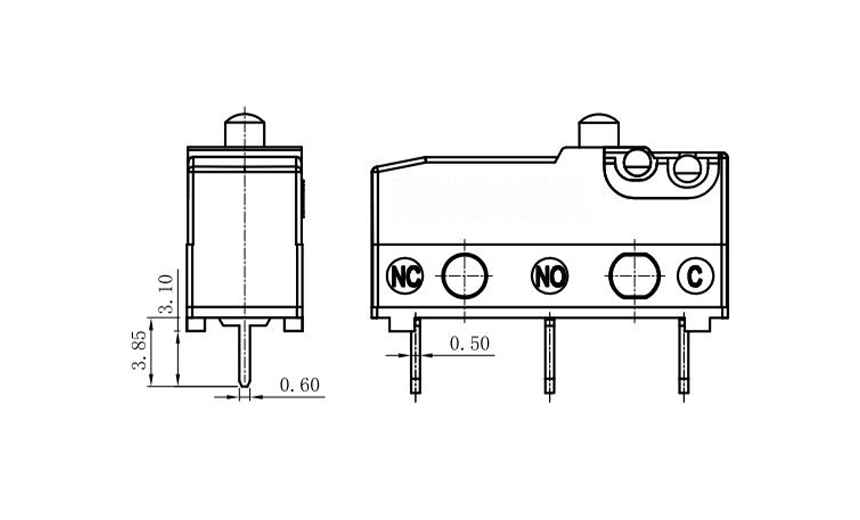

Product Drawing of Mini Micro Switch G91

micro limit switch with roller
miniature limit switch roller actuator
micro switch roller
roller micro switch
micro switch roller type
roller lever micro switch

Mini Micro Switch G91 Related Applications

Home Appliances and Micro Switches
Home Appliances
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular Dustproof Mini Micro Switch G91 series

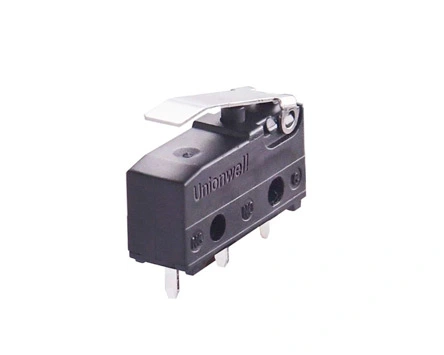

Waterproof Micro Switch 250GF G91
