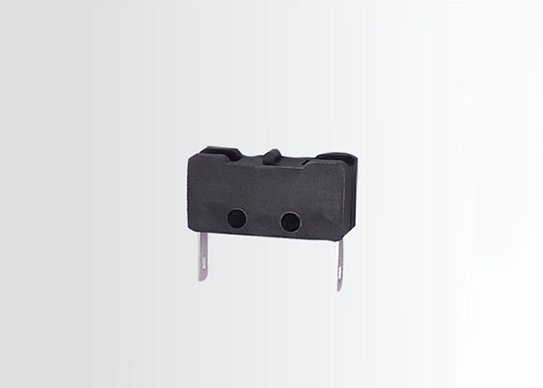

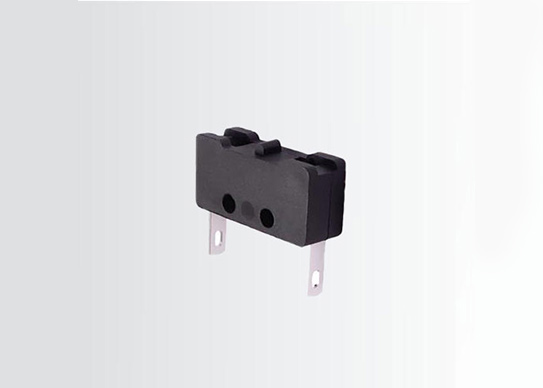

DPDT Micro Switch G606
double micro switch
double micro switch
double pole double throw micro switch
double pole microswitch

DPDT Micro Switch G606

  • Compact size and tight configuration

  • Long life, high reliability

  • Variety of terminals and levers.

  • DPDT double-break circuit

  • Widely used in Industry Control

Quote Datasheet

Specifications of DPDT Micro Switch G606

Place of OriginGuangdong, China (Mainland)
Brand NameMicro Switch Manufacturer Unionwell
Model NumberG606 Series
Max Operating  Force (at pin plunger)200gf
Terminal TypeLong Solder/Straight PCB/Left angle PCB/Right angle PCB/Side Solder
Lever TypeNo Lever/Straight/Straight Lever With Hole
Circuit CodeDPDT-NO/DPDT
CertificationsENEC, UL/cUL, CQC
OEM/ODMAvailable
Operating  FrequencyElectrical10~30 cycles/minute
Mechanical120 cycles/min
Insulation Resistance≥100MΩ（at 500VDC）
Contact Resistance (Initial Value)30~100mΩMax ( Depend on P/N)
Dielectric strengthAC750V RMS, 50~60Hz
Service LifeElectrical50,000~100,000 cycles (Depend on P/N)
Mechanical500,000 cycles
Operating  Temperature-40～+125°C
Operating  Humidity85%RH Max


Products

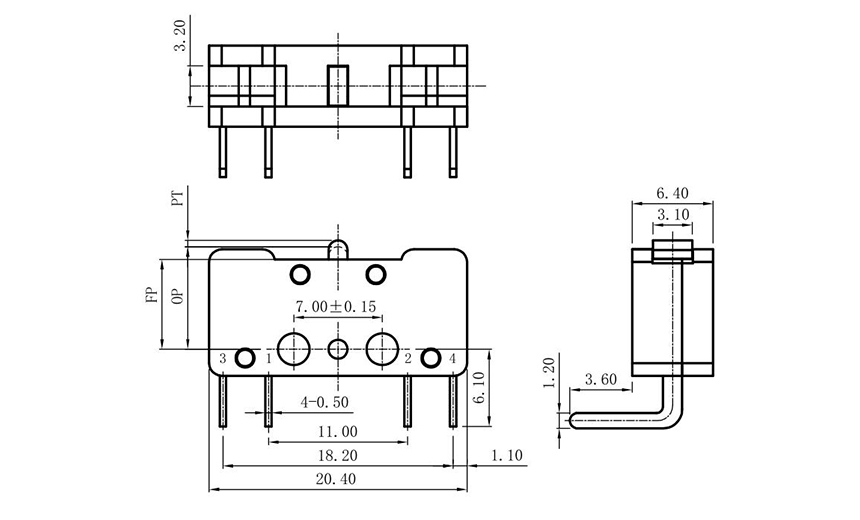

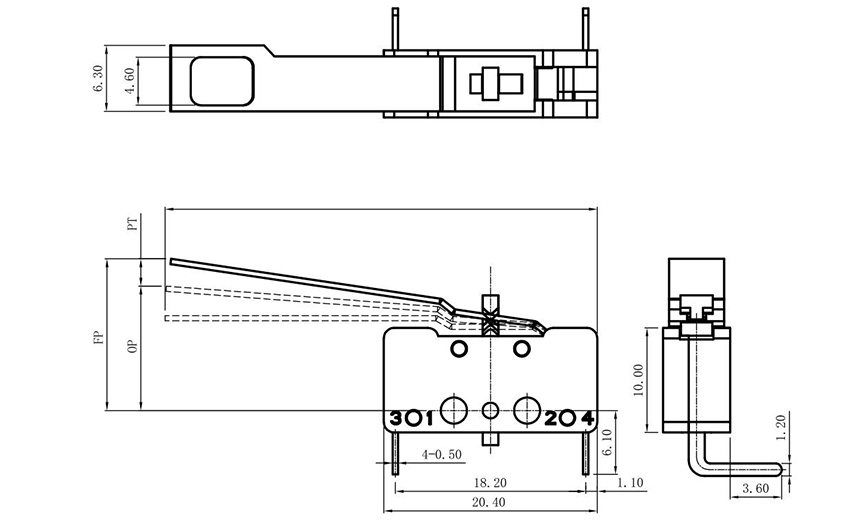

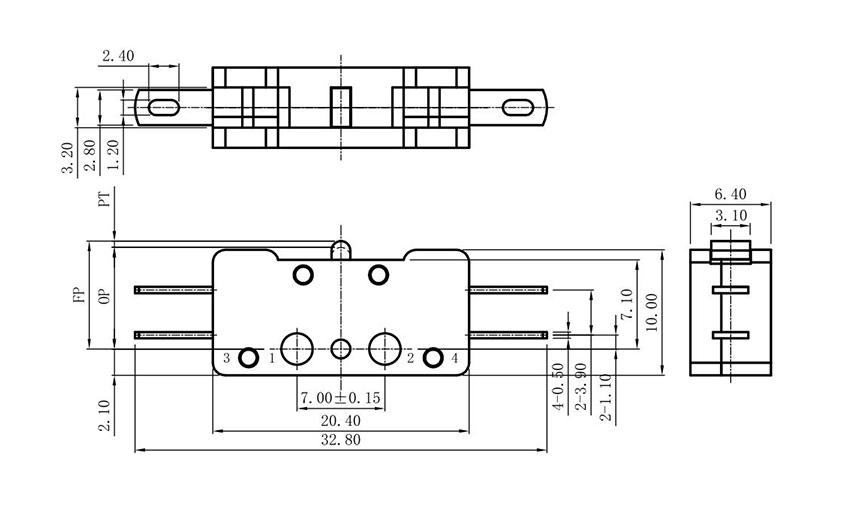

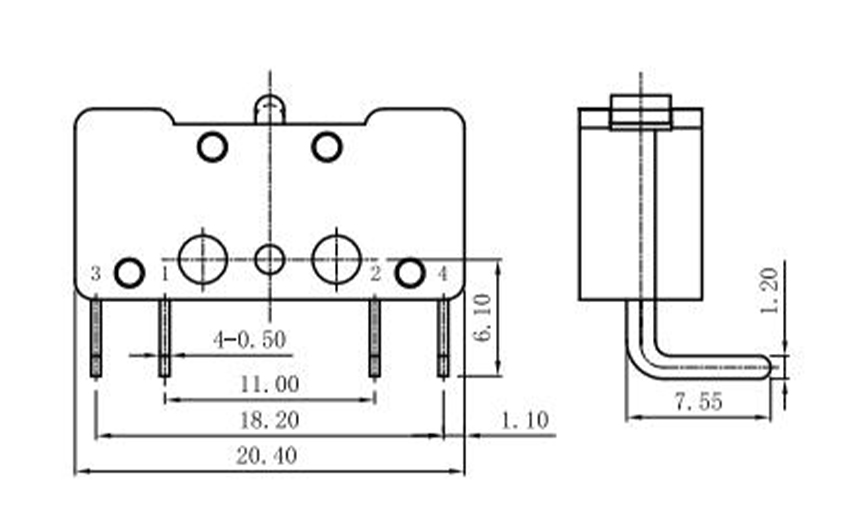

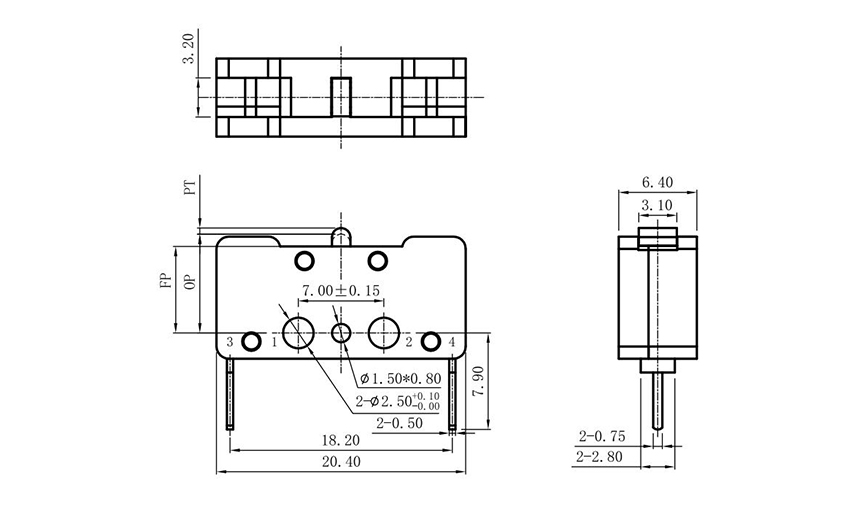

Product Drawing of DPDT Micro Switch G606

double micro switch
double micro switch 3
double micro switch 2
double pole microswitch 2
double pole microswitch
double pole microswitch 3

DPDT Micro Switch G606 Related Applications

Unionwell Micro Switch Contributes to Industrial Automation
Industrial Control
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular Double Pole Double Throw Micro Switch

DPDT Sealed Micro Switch G11
DPDT Sealed Micro Switch G11

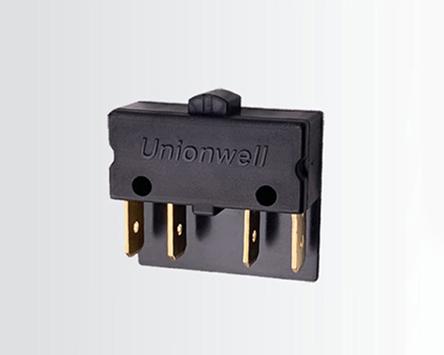

DPDT Micro Switch G21
